iDimension® Plus XL/OEM Series Static Dimensioning System
- Easy to assemble in 30 minutes or less
- Displays dimensions in less than 2 seconds
- Automatic scan and dimension, no special package placement required
- Includes 7 in (178 mm) touchscreen monitor
- Dimensions parcels at NTEP 0.5 inch (10 mm) Legal for Trade accuracy
- Dimensions irregular shapes and polybags at 0.5 inch NTEP Legal for Trade accuracy
- Capable to dimension opaque packaging
- Measurement capabilities beyond Legal for Trade limits
- Standard resolution color camera included
- High resolution color image, 2,880 x 2,160 pixels, available from iDimension Plus 4K
Peripherals
- Optional powered USB hub for use of more than one peripheral
- Optional wired or wireless bar code scanner
- Rice Lake BenchPro shipping/postal scales
- Rice Lake 680, 880, 1280 indicators available for automation applications
Options
- iDimension XL mounting hardware and cable assembly kit (includes sensor mounting bracket, 25 ft US power card and two 10 ft USB Type A extension cables)
- RAM® mount kit for USB display
- Floor mount stand assembly
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
The iDimension® Plus XL is specifically designed for integrators to provide flexibility in the installation of a dimensioning solution anywhere over a conveyor, table or scale from a pole, ceiling mount or support beam. An optional stand is available for ease of integration over a static roller conveyor at 60.2 inches (Legal for Trade) or 79 inches above the platform. The iDimension Plus XL can be used with UPS Worldship and a barcode scanner to add barcode data to process records.
iDimension Plus XL Specifications
|
System Requirements: Power Requirements: Communication Ports: |
Software Integration: Package Contents: Operating Temperature: |
Humidity: |
iDimension Plus XL - Measuring Capabilities
| Model | XL at 1.2 m | XL at 1.5 m | XL at 2 m | |||
|---|---|---|---|---|---|---|
| Platform Distance | 48 in (1,200 mm) | 60 in (1,500 mm) | 80 in (2,000 mm) | |||
| Min/Max | Min | Max | Min | Max | Min | Max |
| Length | 1.2 in (30 mm) | 40 in (1,000 mm) | 1.2 in (30 mm) | 48 in (1,200 mm) | 8 in (203 mm) | 48 in (1,200 mm) |
| Width | 1.2 in (30 mm) | 24 in (600 mm) | 1.2 in (30 mm) | 32 in (800 mm) | 8 in (203 mm) | 32 in (800 mm) |
| Height | 0 in (0 cm) | 24 in (600 mm) | 0 in (0 mm) | 28 in (700 mm) | 4 in (102 mm) | 32 in (800 mm) |
| Division | 0.2 in (5 mm) | 0.2 in (5 mm) | 0.5 in (10 mm) | |||
|
Legal for Trade approved minimum and maximum measurements are available from the country specific certificate of approval. |
||||||
Optional iDimension Plus XL Floor Mount Stand Assembly Dimensions
| Inches | Millimeters | |
|---|---|---|
| A | 47.34 | 1,202 |
| B | 123.13 | 3,128 |
| C | 24.21 | 615 |
iDimension Plus XL Scanning Head Assembly Dimensions
| Inches | Millimeters | Inches | Millimeters | Inches | Millimeters | |||
|---|---|---|---|---|---|---|---|---|
| A | 9.00 | 229 | F | 0.6 | 15 | K | 3.00 | 76 |
| B | 8.50 | 216 | G | 1.60 | 41 | L | M4 × 0.7 threaded hole | |
| C | 7.20 | 183 | H | 1.50 | 38 | |||
| D | 3.30 | 84 | I | 4.50 | 114 | |||
| E | 2.00 | 51 | J | 1.50 | 38 | |||
iDimension XL Mounting Bracket - PN 198708
| Inches | Millimeters | |
|---|---|---|
| A | 7.40 | 187 |
| B | 4.12 | 105 |
| C | 3.14 | 80 |
| D | 2x 0.280 | |
| E | 2x 0.188 | |
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| A Whole New Dimension to Outbound Shipping | View |  Email |
Dimensioning | Application Story |
| The Future of Shipping Is Dim Weight | View | Email |
Dimensioning | Articles |
| Top 10 Ways to Improve Dim Weight Shipping | View | Email |
Dimensioning | Articles |
| Measuring Greatness with the Green Bay Packers | View | Email |
Dimensioning|Bench Scales | Application Story |
Manuals
| Title | Version | Revision | Download | Category | Archived | |
|---|---|---|---|---|---|---|
| iDimension Plus Setup and Operation Manual | B | Download | Email |
Dimensioning | No | |
| iDimension® Plus UPS WorldShip Setup Manual | Download | Email |
Dimensioning | No | ||
| iDimension® Plus XL Assembly Instructions | A | Download | Email |
Dimensioning | No | |
| iDimension® Plus XL Single and Dual Arm Stands | Download | Email |
Dimensioning | No | ||
| QubeVu Developer Guide | Download | Email |
Dimensioning | No | ||
| iDimension Software Suite Software Manual | A | Download | Email |
Dimensioning | No | |
| iDimension Desktop Wedge Software Manual | 1 | A | Download | Email |
Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning|Software | No |
Videos / Webinars
| Title | View | Download | Category | |
|---|---|---|---|---|
| iDimension Plus Measures Dimensions of Small & Irregular Objects | View | Download | Email |
Dimensioning|Packages and Parcels Dimensioning |
| Simple, Fast & Accurate Pallet Dimensioning Systems | View | Download | Email |
Dimensioning |
| Get to Know Rice Lake's iDimension Series | View | Download | Email |
Dimensioning |
| What is Dimensional Weight and Why is it Important? | View | Download | Email |
Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning |
| iDimension & BenchPro Setup for UPS WorldShip Software, Part 1 | View | Download | Email |
Dimensioning|Packages and Parcels Dimensioning |
| iDimension & BenchPro Setup for UPS WorldShip Software, Part 2 | View | Download | Email |
Dimensioning|Packages and Parcels Dimensioning |
| iDimension & BenchPro Setup for UPS WorldShip Software, Part 3 | View | Download | Email |
Dimensioning|Packages and Parcels Dimensioning |
iDimension Plus Measures Dimensions of Small & Irregular Objects
Simple, Fast & Accurate Pallet Dimensioning Systems
Get to Know Rice Lake's iDimension Series
What is Dimensional Weight and Why is it Important?
iDimension & BenchPro Setup for UPS WorldShip Software, Part 1
iDimension & BenchPro Setup for UPS WorldShip Software, Part 2
iDimension & BenchPro Setup for UPS WorldShip Software, Part 3
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 204601 | iDimension Plus XL OEM Kit with US Pwr, Display and Cal Object, OIML/MID/EU/NMI/NTEP |
List Price: $5,295.00 |
|
| 204602 | iDimension Plus XL 4K OEM Kit,US pwr cable,Display and Cal Object, OIML/MID/EU/NMI/NTEP |
List Price: $7,345.00 |
Rice Lake BenchPro Compatible Scales - Shipping Scale 20x20 in (508 x 508 mm) Weight Platter
Rice Lake BenchPro Compatible Scales - Shipping Scale 24x24 in (610 x 610 mm) Weight Platter
Options
iDimension Plus XL Mounting Options
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 174660 | Floor Stand, iDimension/ QubeVu |
List Price: $1,400.00 |
|
| 198708 | Installation Kit,iDim XL Plus hardware and cable assemly kit |
List Price: $175.00 |
|
| 206583 | Installation Kit,iDim XL Plus hardware and cable assemly kit, Intl w/no US power cord |
List Price: $175.00 |
|
| 184262 | iDim Plus XL,Stand Mount Kit for USB display |
List Price: $145.00 |
iDimension Plus XL Accessories
iDimension Plus Barcode Scanner
iDimension Plus UPS Worldship Interface
Integration Solutions
Optional Factory Service and Support
Extended Warranty - 2 year standard
Related Products
iDimension® Plus Static Dimensioning System
The iDimension Plus static dimensioning system automatically measures parcels and irregular packages in less than 0.2 seconds. A small footprint allows for easy integration into current workstations or retail environments.

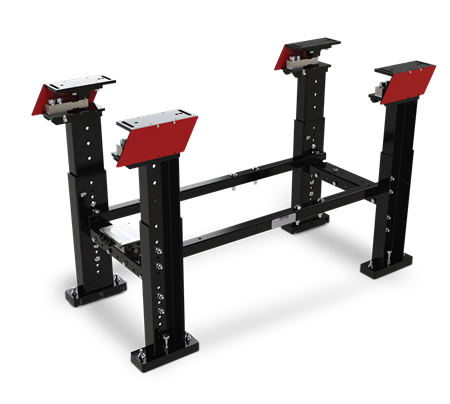

ELS Series Elevated Load Cell Stands
Rice Lake Weighing Systems’ ELS Series elevated load cell stands are made to replace existing legs on a conveyor to convert it into a scale.
