1 kg Range, Calibration Weight Set, OIML Class M1
Standard Features
- Nominal value marked on weights
- Serial numbers applied to case (weights may be marked with symbol)
- Density is approximately 7.95 g/cm3
- OIML E1, E2, F1 and F2 polish finish

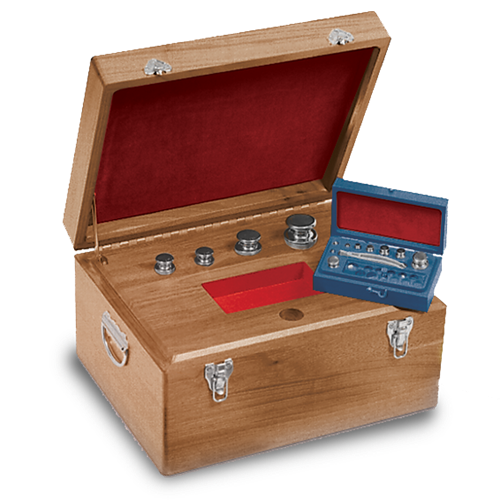

- E1, E2, F1 and F2 weights include protective case
- Weights manufactured international recommendation, OIML R111 specifications
- E1 and E2 supplied with Accredited Certificate per OIML R111
Applications:
- Density measurement
- Tolerance checking
- Mass standards
- OIML guidelines for balance and scale verification
1 kg OIML Classification Weight Set Contents
| 1 kg - 1 mg | 1 kg - 100 mg | 1 kg - 1 g | 1 kg - 100 g |
|---|---|---|---|
| (1) 1 kg | (1) 1 kg | (1) 1 kg | (1) 1 kg |
| (1) 500 g | (1) 500 g | (1) 500 g | (1) 500 g |
| (2) 200 g | (2) 200 g | (2) 200 g | (2) 200 g |
| (1) 100 g | (1) 100 g | (1) 100 g | (1) 100 g |
| (1) 50 g | (1) 50 g | (1) 50 g | – |
| (2) 20 g | (2) 20 g | (2) 20 g | – |
| (1) 10 g | (1) 10 g | (1) 10 g | – |
| (1) 5 g | (1) 5 g | (1) 5 g | – |
| (2) 2 g | (2) 2 g | (2) 2 g | – |
| (1) 1 g | (1) 1 g | (1) 1 g | – |
| (1) 500 mg | (1) 500 mg | – | – |
| (2) 200 mg | (2) 200 mg | – | – |
| (1) 100 mg | (1) 100 mg | – | – |
| (1) 50 mg | – | – | – |
| (2) 20 mg | – | – | – |
| (1) 10 mg | – | – | – |
| (1) 5 mg | – | – | – |
| (2) 2 mg | – | – | – |
| (1) 1 mg | – | – | – |
| Piece Count and Total Weight | |||
| 25 pcs. | 17 pcs. | 13 pcs. | 5 pcs. |
| 2.11111 kg set wt. | 2.111 kg set wt. | 2.11 kg set wt. | 2 kg set wt. |
Parts
| Part # | Description |
|---|---|
| Class M1 | |
| 159154 | Weight Set, 1kg-1mg OIML Stainless Steel, Class M1 |
| 159155 | Weight Set, 1kg-1g OIML Stainless Steel, Class M1 |
Options
| Part # | Description |
|---|---|
| Accessories | |
| 36092 | Form,Statement of Accuracy |
| 11714 | Weight Glove,Cloth White |
| 11711 | Weight,Tweezers 3.54x.46 Delrin |
| 152414 | Tweezers,Curved Tip 130 mm, Tips made of nylon. |
| 25836 | Serial Number |
| 11755 | Cover,Leaf Weight |
| 50035 | Weight Forceps, 4-3/4 Plastic, 200g to 500g |
| 50000 | Tong ASSY,24cmx7.5cm W/ Surgical Tubing On Ends |
| Replacement Cases | |
| Consult | Class M1 Set Range: 1kg-1mg, 1kg-1g |
| Secondary Case | |
| 34697 | Case, PVC 100g-1mg OIML SST Weight Set (5221) |
