220 Universal Mount Stainless Steel Weigh Module

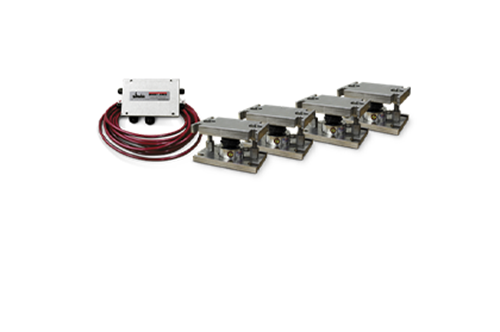

Complete Kit Includes
- Three or four 220 stainless steel compression mounts with 220 stainless steel hermetically sealed compression disk load cells
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
- Capacities (per module): 5,000 to 30,000 kg
- mV/V/ohm calibrated load cells eliminates the need for trimming
- Stainless steel construction
- Easy load cell replacement
- Integral jacking/shipping bolts
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
Ideal for Hopper and Batch Weighing
The 220 Universal Mount is designed to be used with the Vishay Tedea-Huntleigh Model 220 load cell. The mount incorporates built-in jacking bolts to prevent damage to the load cell during installation. Its stainless steel construction is designed to be used in the harshest of environments.
Applications
- Medium- to high-capacity tanks, bins and hoppers
- Washdown or corrosive applications
- Process control and batch weighing

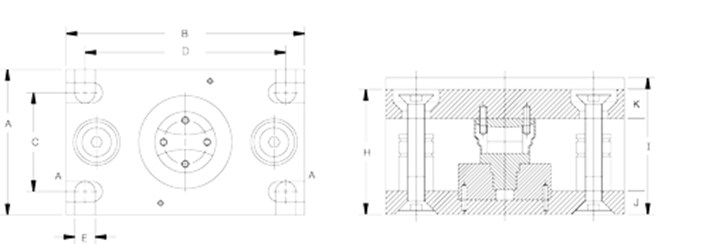

220 Universal Mount Dimensions
| Rated Capacity | A | B | C | D | E | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|
| kg/mm | |||||||||
| 5,000 to 10,000 | 127.0 | 203.0 | 90.0 | 170.0 | 18.0 | 107.0 |
Load cell replacement height: 118.0 |
19.1 | 25.4 |
| 20,000 to 30,000 | 152.0 | 245.0 | 115.0 | 208.0 | 24.0 | 148.0 | Load cell replacement height: 156.0 Operating height: 148.1 |
31.8 | 25.4 |
Resources / Downloads
Parts
3-Module Kit (Includes Load Cell)
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 66208 | Mount Kit,Universal 220 3ea 5000kg SST HS Compression Incl TH 220-5000kg and JB4SS and 25ft of EL147HE Cable |
List Price: $6,355.00 |
|
| 66209 | Mount Kit,Universal 220 3ea 10,000kg SST HS Compression Incl TH 220-10,000kg and JB4SS and 25ft of EL147HE Cable |
List Price: $6,355.00 |
|
| 66210 | Mount Kit,Universal 220 3ea 20,000kg SST HS Compression Incl TH 220-20,000kg and JB4SS and 25ft of EL147HE Cable |
List Price: $7,200.00 |
|
| 66211 | Mount Kit,Universal 220 3ea 30,000kg SST HS Compression Incl TH 220-30,000kg and JB4SS and 25ft of EL147HE Cable |
List Price: $7,200.00 |
