CW-90X Over/Under Checkweigher
As of: Wednesday, July 8, 2026
Standard Features
- Piezo keypad consisting of zero, units, print, tare, over, under, ID, target, enter, menu, power
- 304 stainless steel, IP69K rated indicator
- PreVent™ breather vent
- Storage for up to 50 IDs
- Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)
- High-intensity LED display
- Battery backed time and date
- Two full-duplex RS-232 serial ports
- Configurable print formats
- Audit trail tracking
- Optional communications: Ethernet, USB or fiber optic
- Four configurable digital I/O
- Reflash memory to upgrade firmware
Scale
- IP69K, stainless steel hermetically sealed load cell
- 304 stainless steel
- Meets HACCP requirements
- Five-point overload protection
Approvals
Performance Under Extreme Pressure
For heavy washdown environments and HACCP requirements, choose Rice Lake's CW-90X checkweigher. The CW-90X features the toughest keypad available. This rigid piezo device is made to withstand sharp knife-point contacts, and is resistant to most contaminants and liquids.
The configuration menu of the CW-90X is accessible through the front keypad, eliminating the need to open the back of the indicator and expose the unit to moisture or contaminants. Access to these keypad controls can be limited to meet the operator's needs. The CW-90X will store detailed information for up to 50 separate IDs (expandable with WeighVault), allowing for easy recall of previously saved information. An adjustable contrast display is visible in any environment.
CW-90X Over/Under Checkweigher Specifications
|
POWER AC: POWER CONSUMPTION: EXCITATION VOLTAGE: ANALOG SIGNAL INPUT RANGE: ANALOG SIGNAL SENSITIVITY: MEASUREMENT RATE: SYSTEM LINEARITY: |
DIGITAL I/O: CIRCUIT PROTECTION: DISPLAY: STATUS ANNUNCIATORS: OPERATING TEMPERATURE: RATING MATERIAL: |
DISPLAY RESOLUTION: LOAD CELL: WARRANTY: APPROVALS: |

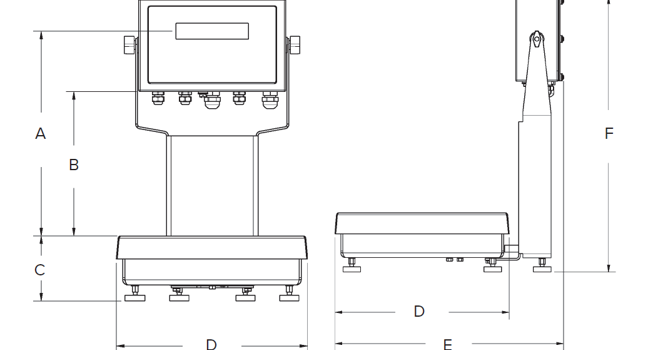

CW-90X Over/Under Checkweigher Dimensions
230 VAC CE Marked/OIML Approved
| Part # | Description | List Price |
|---|---|---|
| 106129 | 3 kg with 305mm column 230VAC SST European Version CE and OIML marked with European plug | List Price: $2,525.00 |
| 106130 | 6 kg with 305mm column 230VAC SST European Version CE and OIML marked with European plug | List Price: $2,525.00 |
| 106131 | 15 kg with 305mm column 230VAC SST European Version CE and OIML marked with European plug | List Price: $2,525.00 |
| 106132 | 15 kg with 305mm column 230VAC SST European Version CE and OIML marked with European plug | List Price: $2,620.00 |
| 106133 | 30 kg with 305mm column 230VAC SST European Version CE and OIML marked with European plug | List Price: $2,620.00 |
| 106134 | 60 kg with 305mm column 230VAC SST European Version CE and OIML marked with European plug | List Price: $2,620.00 |
| Part # | Description | List Price |
|---|---|---|
| 77142 | Interface 720i, 820i, iQube, CW90, CW90X | List Price: $545.00 |
| 93245 | PC Connection, includes 1 meter Type A to mini-B cable | List Price: $225.00 |
| 95357 | Mini-B 1 Meter Long | List Price: $11.00 |
| 96736 | CW90, CW90X, 820i Internal Mount With Bus Power | Consult |
| 78026 | 100 ft. includes polishing kit | List Price: $185.00 |
| 80892 | Disposable, .750 and 1.0mm single and duplex jacket Industrial Fiber Optics #IF-FC2 | List Price: $15.00 |
| 117358 | CW90/90X License (English) | List Price: $265.00 |
| 206272 | RS232/WiFi Interface 802.11 A/B 10/100 XPico for CW90,720i,iQube2 | List Price: $610.00 |
| Consult | Calibration without certificate | Consult |
