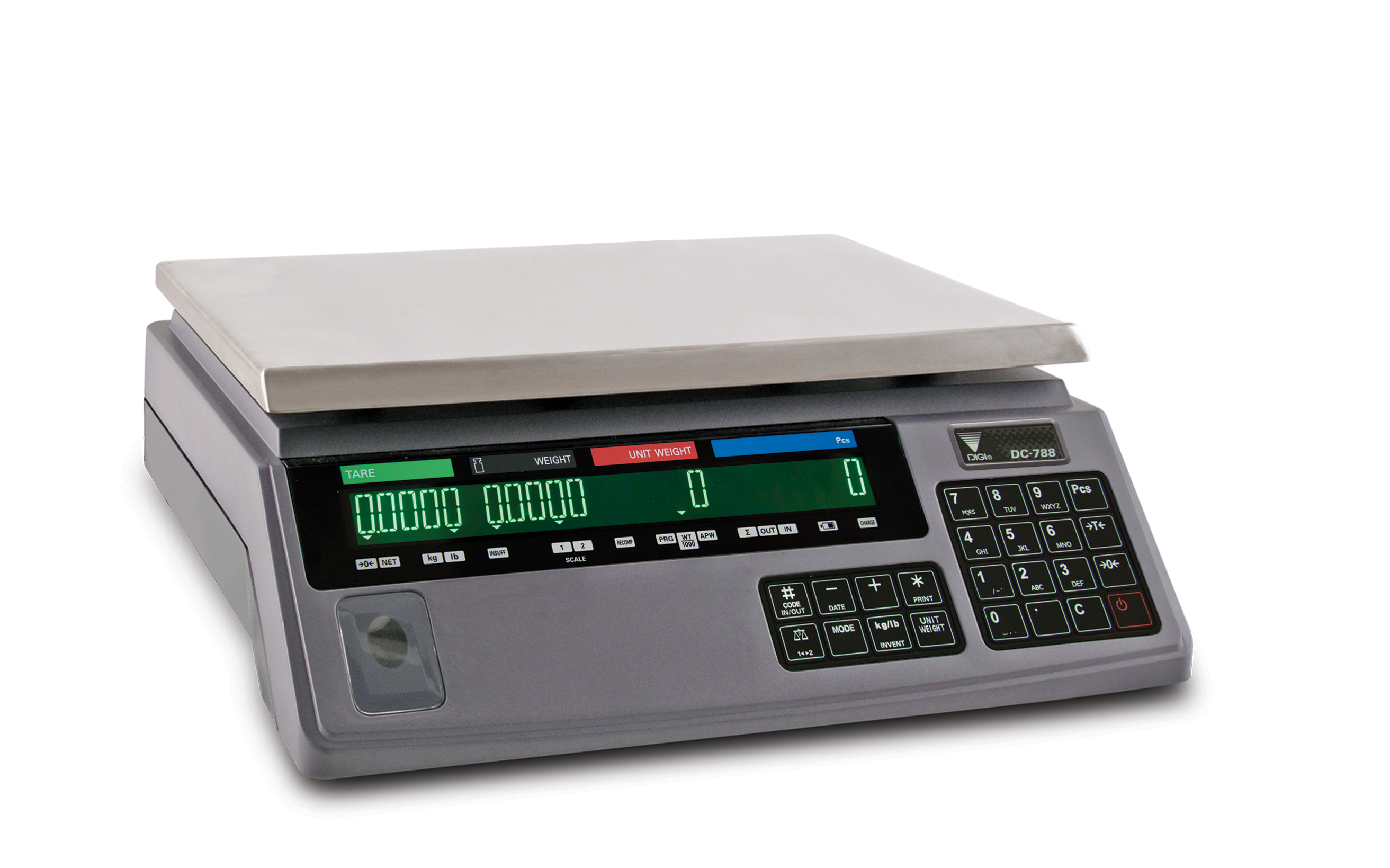

DIGI® DC-788 Series Counting Scale

  • Auto-recomputing function
  • Negative sampling and counting (count out of a full container)
  • Bright green LED
  • Simultaneous weight display, unit weight, tare and quantity
  • Net/gross weight display
  • Lb/kg weight display conversion
  • Full-duplex RS-232 output to PC or printer
  • AC or rechargeable battery operation (battery optional)
  • Choice of unit weight per thousand or average piece weight
  • Remote scale capability
  • 100 product look up registers
  • NTEP for non-counting applications
  • Remote scale interface

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Economical Counting Scale

Doing More For Less

The DIGI DC-788 exceeds all expectations of a counting scale—at a price point that can’t be beat! With a capacity of up to 100 pounds and a rechargeable battery that provides up to 24 hours of continuous usage, this durable counting scale offers tremendous power and virtually unlimited flexibility. Its bright LCD display can be seen from virtually any angle and is highly visible in low light areas. Only non-counting applications are NTEP Certified.

Accurate Simplicity

If accuracy and ease-of-use are important, the DC-788 is a must-have. With its RS-232 interface, you can easily attach a scanner or printer for all your labeling applications. And only the DC-788 allows you to customize your output by disabling specific spec codes. With the DC-788’s increased capacity and power, you can now do much more for a lot less!



Internal Resolution:
1/1,000,000

Weight Display Resolution:
1/5,000 NTEP, other selections capacity dependent

Display:
LED
Weight: five-digit
Unit weight: five-digit
Quantity: seven-digit
Tare: five-digit

Power Source Consumption:
AC: 115, 60 Hz
Optional battery: 6 V, 5.0 Ah

Printer Compatibility:
Zebra® GK-420D
Zebra GK-420T
Epson® TM-U220 tape
STAR® SP512 tape
Epson TM-U295 ticket

Zero Adjust Range:
±127% full scale

Input Sensitivity:
0.4 to 4 mV/V

Load Cell Excitation:
5 VDC

Number of Scale Channels:
One remote scale, one 350-ohm load cell

Memory Items:
100 items

Load Cell Input Connector:
Amphenol 14-Pin

Computer Interface:
RS-232 DB-9M connection



Battery Operation:
24 hours of continuous usage

Charge Time:
8 to 10 hours

Operating Temperature:
14 ºF to 104 ºF (-10 ºC to 40 ºC)

Dimensions:
(W × D × H)
14 × 13.75 × 4.5 in
(354 × 349 × 115 mm)

Warranty:
Two-year limited

Approvals:
NTEP Certified CC 07-015
(10 to 100 lb) Class III for weigh mode only 10- to 100-pound scales only

Resources / Downloads

Title Download Email
DIGI DC-788 Series Catalog Page Download Email

Title Version Revision Download Email Category Archived
DIGI DC-788 Operation Manual 1.19 A Download Email Counting Scales No

Title Download Email
DIGI DC-788 Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
DIGI DC-788 Series High-Resolution Counting Scale Download Email Counting Scales

Parts

Part # Description List Price Cart
88928 Scale,Counting DC-788 2lb 2 x 0.0002LB, 7x10 Platter, RS-232, Remote Channel

List Price: $875.00

88929 Scale,Counting DC-788 10 10 x 0.002LB, 10x13 Platter, RS-232, Remote Channel

List Price: $875.00

88930 Scale,Counting DC-788 25 25 x 0.005 lb, 10x13IN Platter, RS-232, Remote Channel

List Price: $875.00

88931 Scale,Counting DC-788 50 50 x 0.01lb, 10x13 Platter, RS-232, Remote Channel

List Price: $875.00

88932 Scale,Counting DC-788 100 100 x 0.02LB, 10x13 Platter, RS-232, Remote Channel

List Price: $1,095.00

Optional Digi S-YC Remote Scale Base

Options

Cables, Consumables and Misc Options

Part # Description List Price Cart
88933 Battery,DC-788 6V, 5.0AH Sealed Lead-acid

List Price: $80.00

73386 Tray, Sample Plastic, Anti-Static DC-180, DC-150, DC-688, DC-788, ST-10

List Price: $26.00

32375 CONN,Plug 14-Pin Male DIGI connector

List Price: $21.00

35319 Cable,4 Conductor 20ft Used On Roughdeck W/DIGI (Not Designed to Work w/Y-Cable)

List Price: $72.00

91685 Manual,Operating DC-788

List Price: $26.00

70056 Cable,RS232 DB9M To DB9F Straight Cable

List Price: $40.00

72440 Cable,RS232 Straight 25 Pin D SUB Male to 9 Pin D SUB Female, Pinout: 2 to 2, 3 to 3, 5 to 7 G, RTS to DSR, DSR to DTR Cable is 6ft long

List Price: $67.00

66535 Cable,DB9F to DB9F Null Modem Serial Cable 6 Foot

List Price: $46.00

91214 Power Supply,DC-788 120V 60HZ, 18W, 9VDC, 600mA

List Price: $46.00

Printers

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
