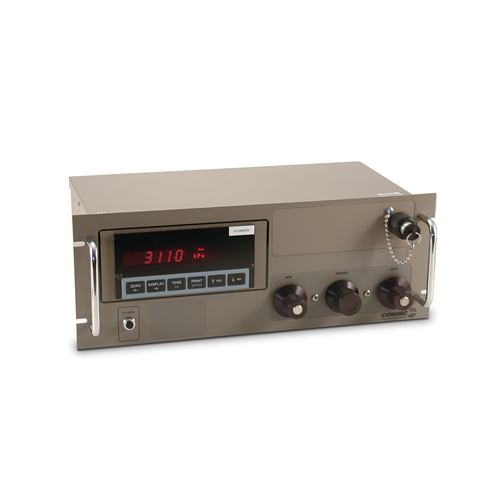

DLR3110 Digital Pressure Standard

As of: Sunday, May 25, 2025
Save or Print to PDF
Portals 0 Products 63836Ad945d04fdda87beadedce8d3bc Orig

Standard Features

  • Test port placement may be configured for front or rear of unit
  • 115 or 230 VAC operation
  • Ranges from vacuum to 10,000 psi
  • 20 selectable engineering units
  • Freeze mode for pressure switch testing
  • 0.05% of reading, 0.1% of reading, or the economical 0.25% of reading model
  • Selectable resolution
  • Digital outputs: RS-232, RS-422, and RS-485
  • Min/Max pressure readings
  • Accuracy is percent of reading from 20% of full scale
  • Different technicians can operate the system and get identical results...every time
  • Pneumatic only - no hydraulics or distilled water messes
  • Calibration Certificate included - traceable to the National Institute of Standards and Technology (NIST)

Applications

  • Test stands
  • On-site manufacturing pressure monitoring
  • Transfer standard
  • Low-cost digital data logging of readings

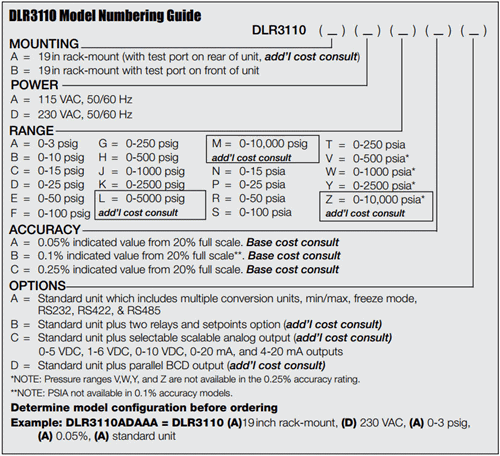

Condec DLR3110 Model Numbering Guides



Condec DLR3110 Specifications

Overall Accuracy:
0.05% of reading, 0.1% of reading, 0.25% of reading all from 20% of full scale and above. Below 20% of full scale units remain 0.05%, 0.1%, or 0.25% of 20% of full scale range. Includes all effects of linearity, hysteresis, repeatability, and ambient temperature. No temperature effect from 40°F to 140°F. NIST traceable

Temperature Range:
Operating: 40°F to 140°F (4°C to 60°C)
Storage: 0°F to 185°F (-17°C to 85°C)
Warm up: 3 minutes to rated accuracy, 15 minutes to complete stability

Calibration:
Full NIST traceability. Calibration points can be adjustable for operator convenience. Calibration via front panel and/or digital interface

Resolution:
Adjustable, 50,000 display counts (maximum) of range

Display Size:
Two-line, six-digit, 0.6 in. high numeric display, eight alpha characters per line, three annunciator light bars, bright red Light Emitting Diode (LED)

Pressure Hose:
Quantity supplied: One output
Length: 4 ft. nominal

Display Update:
Adjustable, 100 ms maximum

Media Compatibility:
Any media compatible with 17-4PH or 15-5PH stainless steel

Overpressure:
200% of range (minimum)

Power Requirements:
115 or 230 VAC

Case Material:
16 gauge, mild steel with textured finish, baked epoxy enamel paint

Weight:
DLR3110: 19 lb (8.6 kg)

Overall Dimensions:
19 W x 7 H (EIA 4U) x 10 in. deep (482.6 W x 177.8 H (4 HE) x 254 mm) Excluding front handles

Options

Part # Description
58478 Pressure Trap,UPC5200 All Ranges, PIN7000 PIN7010 PIN8000 PIN8010 All, UPS3110 and DLR3110 Ranges 5000 PSI and Above Operation
58483 Pressure Trap, UPC5000 All Ranges, Source 3000 PN 65315, UPS3110 Ranges 500 to 2000 PSI, DLR3110 Ranges 250 to 2500 PSI Operation Rated Working Pressure 3000 PSIG
74843 LIT,Manual DLR3110 Operation and Maintenance
74844 LIT,Manual DLR334 DLR3110 Supplement 2 Relays and Setpoints Option
74845 LIT,Manual DLR334 DLR3110 Duplex Serial Protocol
55281 Hose Kit,Test Port Output UPC5100 5 Foot Long hose, 2500 psig working pressure, with Quick Disconnect Brass Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling On Opposite End
55328 Hose Kit,Test Port Output UPC5100 10 Foot Long with Quick Disconnect Brass Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End
55336 Hose Kit,Test Port Output UPC5100 15 Foot Long with Quick Disconnect Brass Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End
55341 Hose Kit,Test Port Output UPC5100 20 Foot Long with Quick Disconnect Brass Plug on One End abd 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End
55279 Hose Kit,Test Port Output UPC5000 DPC1000 DPC2000 5 ft Long with Quick Disconnect SST Plug One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling On Opposite End 2500 PSIG Working Pressure
55300 Hose Kit,Test Port Output UPC5000 DPC1000 DPC2000 10 Foot Long with Quick Disconnect SST Plug One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling On Opposite End
55310 Hose Kit,Test Port Output UPC5000 DPC1000 DPC2000 20 Foot Long with Quick Disconnect SST Plug One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling On Opposite End
55280 Hose Kit,Test Port Output UPC5200, PIN7000, PIN8000 5 Foot Long with Quick Disconnect SST Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End, 3/16 in Hose ID, 10,000 PSI (690 BAR) Working Pressure
131096 Hose Kit,Test Port Output 10 ft. test hose for UPC5200, UPS3110, DLR3110, PIN7000 & PIN8000 (5000 psi and above) Quick Disconnect SST Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End
