Flintec 52-18 Load Cell Mounts
As of: Wednesday, October 7, 2026
Standard Features
- Universal system
- Capacity range 100 kg to 10.000 kg
- Blind hole load introduction
- Low profile
- Easy to install
- No check links needed
- Two basic versions:
- 52-18RS rocking system
- 52-18SS sliding systems
Options
- Overload protection
- Lift-off protection
- Welding plate
- Bolting plate
Applications
- Medium capacity tanks, bins and hoppers
- Process control and batching
Mount Configuration
- Rocking system: rocking pin and bumper; free rocking pin and bumping rocking pin
- Sliding system: sliding pin and bumpers, free slinging pin and fixed pin
Flintec's 52-18RS load cell mount is an ideal choice for status tank and hopper applications. Flintec's 52-18SS (sliding pin) load cell mount is an ideal choice when very large expansions/contractions due to temperature or other reasons are expected.
Designed to work with SB4, SB5 and SLB load cells.

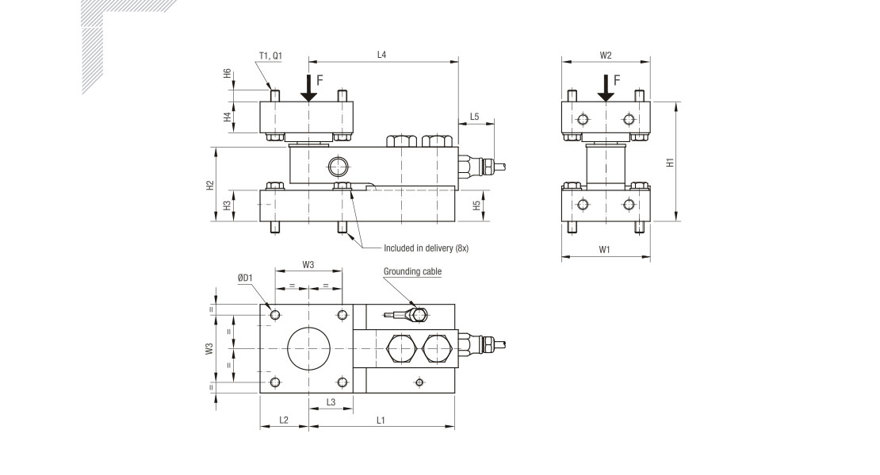

Flintec 52- 8 Load Cell Mounts Dimensions
| Rated Capacity | H1 | H2 | H3 | H4 | H5 | H6 | L1 | L2 | L3 | L4 | L5 | W1 | W2 | W3 | D1 | T1 | Q1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | |||||||||||||||||
| 5 to 20 kN | 100 | 63 | 25 | 25 | 27 | 14 | 130 | 45 | 40 | 140 | 41 | 80 | 80 | 58 | 9 | M8 | 25 Nm |
| 50 kN | 135 | 84 | 35 | 35 | 35 | 13 | 165 | 55 | 50 | 169 | 41 | 100 | 100 | 76 | 11 | M10 | 50 Nm |
| 100 kN | 195 | 128 | 50 | 50 | 50 | 18 | 205 | 80 | 60 | 215 | 41 | 120 | 120 | 90 | 14 | M12 | 115 Nm |
Rocking System Mount
| Part # | Description | List Price |
|---|---|---|
| 162848 | 5kn-20kn Rocking System with free rocking pin. Used with Flintec SB4/SB5 load cell. Mild steel, zinc plated 52-18RS-B | Consult |
| 162849 | 50kn Rocking System with free rocking pin. Used with Flintec SB4/SB5 load cell. Mild steel, zinc plated 52-18RS-B | Consult |
| 162850 | 100kn Rocking System with free rocking pin. Used with Flintec SB4/SB5 load cell. Mild steel, zinc plated 52-18RS-B | Consult |
Rocking System Mount (Bumping rock pin)
| Part # | Description | List Price |
|---|---|---|
| 162851 | 5kn-20kn Rocking System with bumping rocking pin. Used with Flintec SB4/SB5 load cell. Mild steel, zinc plated 52-18RS-C | Consult |
| 162852 | 50kn Rocking System with bumping rocking pin. Used with Flintec SB4/SB5 load cell. Mild steel, zinc plated 52-18RS-C | Consult |
| 162853 | 100kn Rocking System with bumping rocking pin. Used with Flintec SB4/SB5 load cell. Mild steel, zinc plated 52-18RS-C | Consult |
Sliding System Mount (Sliding pin and bumpers)
| Part # | Description | List Price |
|---|---|---|
| 162854 | 5kn-20kn Sliding System with sliding pin and bumpers. Used with Flintec SB4/SB5 load cell. Mild steel, zinc plated 52-18SS-A | Consult |
| 162855 | 50kn Sliding System with sliding pin and bumpers. Used with Flintec SB4/SB5 load cell. Mild steel, zinc plated 52-18SS-B | Consult |
| 162856 | 100kn Sliding System with sliding pin and bumpers. Used with Flintec SB4/SB5 load cell. Mild steel, zinc plated 52-18SS-C | Consult |
