Flintec® PC1 Stainless Steel, Single Point Load Cell
As of: Wednesday, July 22, 2026
Standard Features
With an environmentally protected seal and stainless steel construction, these load cells are suitable for use in tough industrial environments. Capacities range from 10 to 200 kg. 10 to 75 kg capacities are NTEP approved, and 100 to 200 kg capacities are non-NTEP. Each unit includes 10 ft of load cell cable.
PC1 Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: Cable Diameter: |
Cable Color Code: Max Platform Size: Warranty: Approvals: |

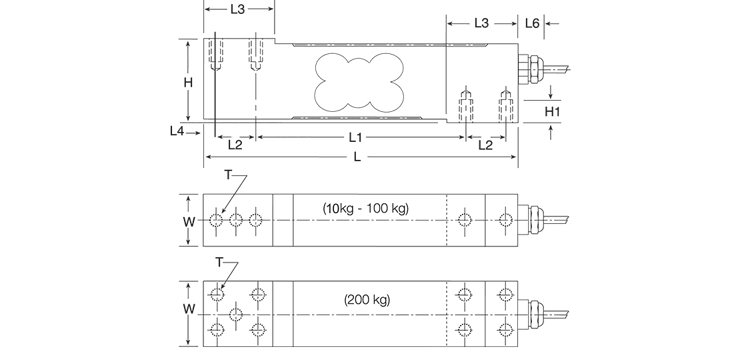

PC1 Load Cell Dimensions
| Rated Capacity | H | H1 | L | L1 | L2 | L3 | L4 | L6 | W | T |
|---|---|---|---|---|---|---|---|---|---|---|
| kg/mm | ||||||||||
| 10 to 100 | 40.0 | 10.0 | 150.0 | 100.0 | 19.0 | 32.0 | 6.0 | 20.0 | 25.4 | 1/4-20 UNC × 19.1DP |
| 200 | 40.0 | 10.0 | 150.0 | 100.0 | 19.0 | 32.0 | 6.0 | 20.0 | 38.1 | 1/4-20 UNC × 19.1DP |
NTEP Certified
| Part # | Description | List Price |
|---|---|---|
| 41821 | 10ft Flintec 2mV/V 350 OHM EW SST NTEP 1:4500 III OIML C3 | List Price: $335.00 |
| 36219 | 10ft Flintec 2mV/V 350 OHM EW SST NTEP 1:4500 III S OIML C3 | List Price: $335.00 |
| 36220 | 10ft Flintec 2mV/V 350 OHM EW SST NTEP 1:4500 III S OIML C3 | List Price: $335.00 |
| 36221 | 3M Flintec 2mV/V 350 OHM EW SST NTEP 1:4500 III S OIML C3 | List Price: $335.00 |
| 36222 | 10ft Flintec 2mV/V 350 OHM EW SST NTEP 1:4500 III S OIML C3 | List Price: $335.00 |
Non-NTEP Certified
| Part # | Description | List Price |
|---|---|---|
| 36223 | C3 10ft Flintec 2mV/V 350 OHM EW SST | List Price: $335.00 |
| 36224 | C3 10ft Flintec 2mV/V 350 OHM EW SST | List Price: $510.00 |
