Flintec® PC2 Stainless Steel, Single Point Load Cell

As of: Wednesday, September 30, 2026

Standard Features

This high-accuracy stainless steel, single point load cell is an ideal replacement cell for hopper applications with damaged bellows. This load cell also features complete hermetic sealing for use in the toughest environments. It's offered in a 150-kilogram capacity and comes complete with 3 meters of load cell cable.

Approvals

WARNING: Cancer and Reproductive Harm California Proposition 65

PC2 Load Cell Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
960 (±50) ohm

Input Resistance:
1,100 (±50) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
3 m

Cable Diameter:
5.0 mm
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Blue +Sense
Brown -Sense
Yellow shield

Warranty:
One-year limited

Approvals:
FM

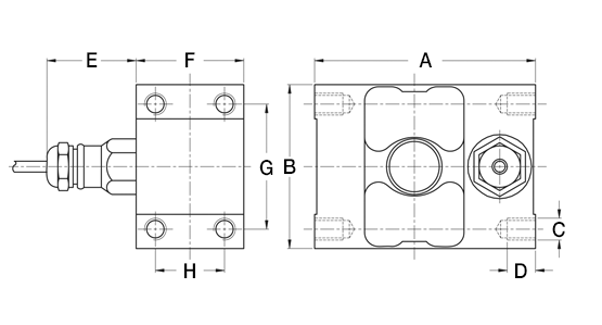

PC2 Load Cell Dimensions

Rated Capacity	A	B	C	D	E	F	G	H
kg/mm
150	101.6	75.0	M10	13.0	41.0	49.5	57.2	31.8

Part #	Description	List Price
41176	G3 10ft Flintec 2mV/V 960 OHM SST HS IP68	List Price: $1,175.00
