Flintec® PC3 Stainless Steel, Single Point Load Cell
As of: Wednesday, July 8, 2026
Standard Features
A stainless steel, single point load cell. Has an IP67 rating and is environmentally sealed, making it ideal for harsh environments, Capacities range from 7 to 150 kg. Complete with 10 ft of load cell cable.
PC3 Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material Finish: Temperature: Seal Type: |
Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: Cable Diameter: |
Color Code: Max Platform Size: Warranty: Approvals: |

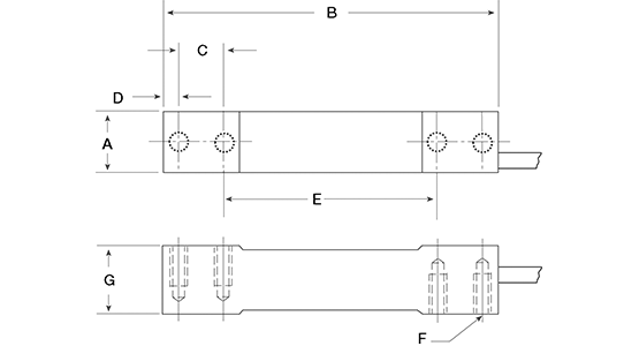

PC3 Load Cell Dimensions
| Rated Capacity | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| kg/mm | |||||||
| 7 to 10 | 18.2 | 140.0 | 19.0 | 6.4 | 88.9 | 1/4-20 UNC | 30.0 |
| 30 to 60 | 24.5 | 140.0 | 19.0 | 6.4 | 88.9 | 1/4-20 UNC | 30.0 |
| 100 to 150 | 30.8 | 140.0 | 22.4 | 7.8 | 79.3 | 3/8-16 UNC | 30.0 |
| Part # | Description | List Price |
|---|---|---|
| 202686 | PC3-7kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3 | List Price: $335.00 |
| 202687 | PC3-10kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3 | List Price: $335.00 |
| 202688 | PC3-30kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3 | List Price: $335.00 |
| 202689 | PC3-60kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3 | List Price: $335.00 |
| 202690 | PC3-100kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3 | List Price: $335.00 |
| 202691 | PC3-150kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3 | List Price: $335.00 |
