Flintec SB14 Stainless Steel, Single-Ended Beam Load Cell

SB14 Load Cell Specifications

Full Scale Output:
2.0 mV/V
mV/V/ohm calibration

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
± 0.03% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Diameter:
0.196 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
One-year limited

Approvals:
NTEP
OIML (Available upon request)
FM

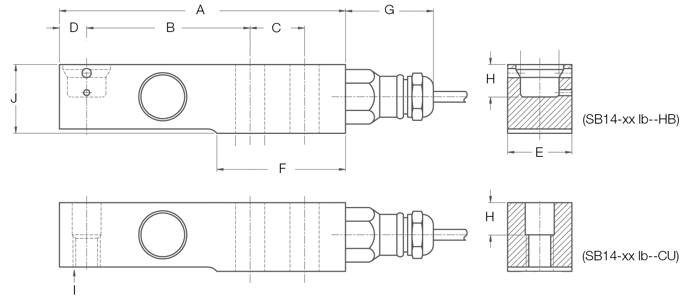

Rated Capacity	A	B	C	D	E	F	G	H	I*	J
lb/in
500 to 5,000	5.25	3.00	1.00	0.50	1.18	2.35	1.61	0.59	1/2-20 UNF	1.22
CU versions have counterbore/unified thread 1/2-20UNF, HB versions have a blind hole

Rated Capacity

lb/in

500 to 5,000

5.25

3.00

1.00

0.50

1.18

2.35

1.61

0.59

1/2-20 UNF

1.22

CU versions have counterbore/unified thread 1/2-20UNF, HB versions have a blind hole

CU Version - Counterbore/Unified threads 1/2-20 UNF

Part #	Description	List Price
41167	10ft Flintec 2mV/V 1000 OHM NTEP III 5 M HS SST IP69K	List Price: $510.00
41168	C3 10ft Flintec 2mV/V 1000 OHM NTEP III 5 M SST HS IP69K	List Price: $510.00
41169	C3 2,500lb 10ft Flintec 2mV/V 1000 OHM NTEP III 5 M HS SST IP69K	List Price: $510.00
41170	C3 10ft Flintec 2mV/V 1000 OHM NTEP III 5 M HS SST IP69K	List Price: $510.00

Part #

Description

List Price

41167

10ft Flintec 2mV/V 1000 OHM NTEP III 5 M HS SST IP69K

List Price: $510.00

41168

C3 10ft Flintec 2mV/V 1000 OHM NTEP III 5 M SST HS IP69K

List Price: $510.00

41169

C3 2,500lb 10ft Flintec 2mV/V 1000 OHM NTEP III 5 M HS SST IP69K

List Price: $510.00

41170

C3 10ft Flintec 2mV/V 1000 OHM NTEP III 5 M HS SST IP69K

List Price: $510.00

HB Version - Blind Hole

Part #	Description	List Price
119556	500lb 10ft 2mv/v 1000 Ohm NTEP 5M C3 IP69K SST HS Blind Hole Flintec	List Price: $510.00
119557	1000lb 10ft 2mv/v 1000 Ohm NTEP 5M C3 IP69K SST HS Blind Hole Flintec	List Price: $510.00
119558	2500lb 10ft 2mv/v 1000 Ohm NTEP 5M C3 IP69K SST HS Blind Hole Flintec	List Price: $510.00
119559	5000lb 10ft 2mv/v 1000 Ohm NTEP 5M C3 IP69K SST HS Blind Hole Flintec	List Price: $510.00

Part #

Description

List Price

119556

500lb 10ft 2mv/v 1000 Ohm NTEP 5M C3 IP69K SST HS Blind Hole Flintec

List Price: $510.00

119557

1000lb 10ft 2mv/v 1000 Ohm NTEP 5M C3 IP69K SST HS Blind Hole Flintec

List Price: $510.00

119558

2500lb 10ft 2mv/v 1000 Ohm NTEP 5M C3 IP69K SST HS Blind Hole Flintec

List Price: $510.00

119559

5000lb 10ft 2mv/v 1000 Ohm NTEP 5M C3 IP69K SST HS Blind Hole Flintec

List Price: $510.00
