Flintec® SB6 Stainless Steel, Single-ended Beam Load Cell

As of: Saturday, August 15, 2026

Standard Features

This stainless steel, hermetically sealed, single-ended beam has a special loading hole and provides excellent performance in harsh environments. It has a low-profile design and a capacity range from 0.2 to 2 kilonewtons, complete with 10 feet of load cell cable.

Approvals

WARNING: Cancer and Reproductive Harm California Proposition 65

SB6 Load Cell Specifications

Full Scale Output:
2.0 mV/V
mV/V/ohm calibration

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
0.01% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Diameter:
0.196 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Yellow shield

Warranty:
One-year limited

Approvals:
OIML
FM

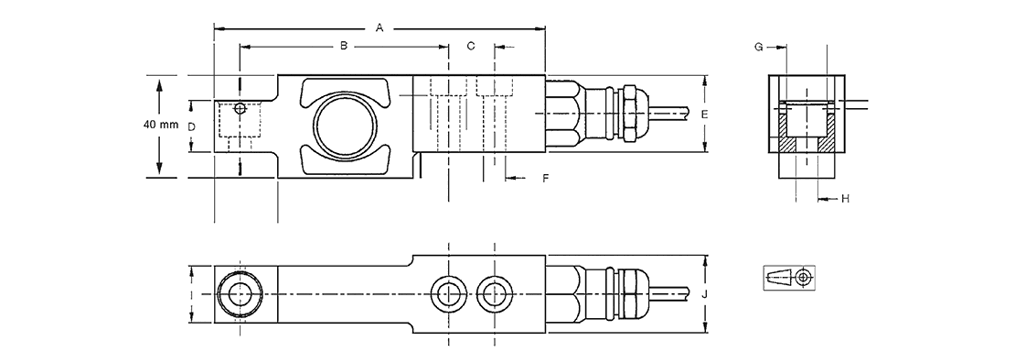

SB6 Load Cell Dimensions

Rated Capacity	A	B	C	D	E	F	G	H	I	J
kN/mm
0.2 to 2	130.0	82.0	18.0	20.0	30.0	8.7	16.0	8.7	22.0	30.0

Part #	Description	List Price
41163	20.4kg 10ft Flintec 2mV/V 1000 OHM OIML C3 SST HS IP68 OIML C3	List Price: $565.00
41164	.5KN 10ft Flintec 2mV/V 1000 OHM OIML C3 SST HS IP68 OIML C3	List Price: $565.00
41165	1KN 10ft Flintec 2mV/V 1000 OHM OIML C3 SST HS IP68 OIML C3	List Price: $565.00
41166	204kg 10ft Flintec 2mV/V 1000 OHM OIML C3 SST HS IP68 OIML C3	List Price: $565.00

www.ricelake.com | 800-472-6703
