Flintec SLB Stainless Steel, Single-Ended Beam Load Cell

SLB Load Cell Specifications

Full Scale Output:
2.0 mV/V
mV/V/ohm calibration

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP67

Combined Error:
0.01% full scale

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 15 VDC

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Diameter:
0.196 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Yellow shield

Warranty:
One-year limited

Approvals:
NTEP
OIML
FM

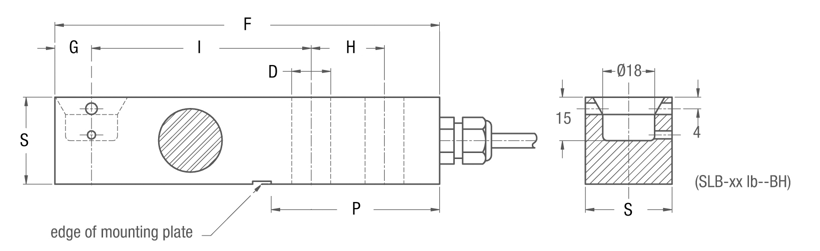

Rated Capacity	D	F	G	H	I	P	S
lb/mm
200 to 5,000	12.9	136.3	12.7	25.4	76.2	61.5	30.2

Rated Capacity

lb/mm

200 to 5,000

12.9

136.3

12.7

25.4

76.2

61.5

30.2

Part #	Description	List Price
77422	C3 10ft Flintec 2 mV/V 1000 OHM NTEP III 5 S SST IP67 FM Blind Hole OIML C3	List Price: $350.00
77423	C3 10ft Flintec 2 mV/V 1000 OHM NTEP III 5 S SST IP67 FM Blind Hole OIML C3	List Price: $350.00
68527	C3 10ft Flintec 2 MV/V 1000 OHM NTEP III 5 S SST IP67 Blind Hole OIML C3	List Price: $350.00
68528	C3 10ft Flintec 2 MV/V 1000 OHM NTEP III 5 S SST IP67 Blind Hole OIML C3	List Price: $350.00
68529	C3 10ft Flintec 2 MV/V 1000 OHM NTEP III 5 S SST IP67 Blind Hole	List Price: $350.00

Part #

Description

List Price

77422

C3 10ft Flintec 2 mV/V 1000 OHM NTEP III 5 S SST IP67 FM Blind Hole OIML C3

List Price: $350.00

77423

C3 10ft Flintec 2 mV/V 1000 OHM NTEP III 5 S SST IP67 FM Blind Hole OIML C3

List Price: $350.00

68527

C3 10ft Flintec 2 MV/V 1000 OHM NTEP III 5 S SST IP67 Blind Hole OIML C3

List Price: $350.00

68528

C3 10ft Flintec 2 MV/V 1000 OHM NTEP III 5 S SST IP67 Blind Hole OIML C3

List Price: $350.00

68529

C3 10ft Flintec 2 MV/V 1000 OHM NTEP III 5 S SST IP67 Blind Hole

List Price: $350.00

Full Scale Output:
2.0 mV/V
mV/V/ohm calibration

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP67

Combined Error:
0.01% full scale

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 15 VDC

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Diameter:
0.196 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Yellow shield

Warranty:
One-year limited

Approvals:
NTEP
OIML
FM
