Product PDF

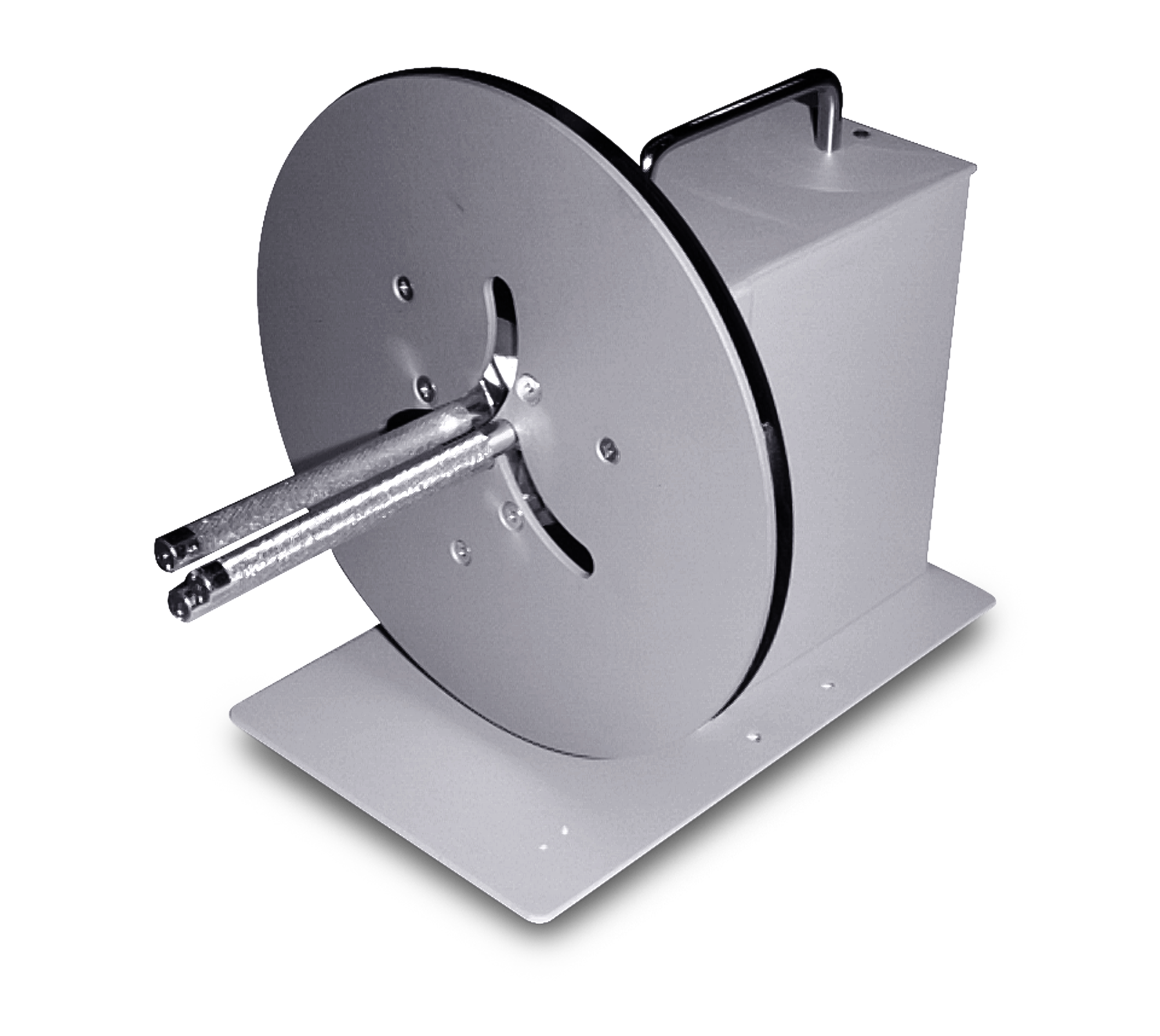

Honeywell DMXREW1 Label Rewinder/Unwinder

  • Rewinds or dispenses label rolls up to 4 in (101.6 mm) wide, up to 8 in (203 mm) diameter at 10 in (254 mm) per second
  • Adjustable core holder
  • Coreless rewinding
  • Steel construction
  • Anti-slip feet
  • Constant adjustable Torque™ technology
  • Bidirectional operation
  • ON-OFF start/stop switch
  • Inner label flange to keep edge of label web aligned as labels are rewound
  • Compatible with all Datamax-O'Neil® I Series and Rice Lake SURVIVOR® SST printers
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

UL Listed CSA

WARNING: Cancer and Reproductive Harm California Proposition 65
Honeywell Dmxrew1

Label Width:
Up to 4.5 in (113 mm)

Maximum Label Roll Weight:
8.5 lb (3.9 kg)

Label Roll Diameter:
Up to 8 in (200 mm)

Core Diameter:
Use any cardboard core from 1 to 4 in (25 to 102 mm)

Speed:
Up to 10 ips (25+ mm/sec)
Switch adjustable rewind force
No adjustments are required

Start/Stop:
Convenient ON-OFF switch

Direction:
Bidirectional

Power Requirements:
115 VAC 60 Hz

Overall Size:
(L × W × H)
11.00 × 9.00 × 6.00 in
(279 × 152 × 229 mm)

Weight:
13 lb (5.9 kg)

Warranty:
Parts and labor: one-year limited

Approvals:
UL
CSA certified

Resources / Downloads

Title Download Email
Honeywell DMXREW1 Catalog Page Download Email
