iDimension Plus/Plus XL Static Dimensioning System
As of: Wednesday, July 8, 2026
Standard Features
- iDim Plus package includes: Base plate, pole assembly, USB display, calibration object, US power cord, operating manual and assembly toolkit
- iDim Plus XL package includes: iDimension Plus XL scanner head, 10 ft Ethernet cable, USB display, calibration object, US power cord and operating manual
- Easy to assemble in 30 minutes or less
- Displays dimensions in 0.2 seconds
- No special package placement requirements
- Capable to dimension opaque packaging
- Measurement capabilities beyond Legal for Trade limits
- Standard resolution color camera
- High resolution color image, 2880 × 2160 pixels, available from iDimension Plus 4K
Options
- iDimension SS (Software Suite) or iDimension Desktop Wedge programs for data integration
- Powered USB hub for use of more than one peripheral
- Wired or wireless USB barcode scanner
- Rice Lake BenchPro shipping/postal scales
- Rice Lake 680, 880, 1280 indicators available for automation applications
The Fastest Solution for Package Dimensioning
When it comes to calculating the dimensions of boxes, flats, polybags and more, Rice Lake's iDimension Plus is the fastest static tabletop solution on the market. It can be assembled in 30 minutes and helps prevent revenue loss by providing accurate dimensional weight calculations required by parcel and postal carriers.
Industry-leading Dimensioning Systems
Dimension parcels faster and more accurately than manual measurements with the iDimension Plus. In an industry-leading 0.2 seconds, parcels are automatically calculated at 0.2 inches or +/-0.5 inches for irregular packages, eliminating the risk of human error. The iDimension Plus is NTEP certified for single irregular and cubic-shaped non-transparent objects.
Innovative Technology for Parcel Dimensioning Systems
The iDimension Plus uses multiple patented 3D-imaging technologies with advanced algorithms to optimize time and throughput for static outbound shipments. For objects under 1.2 inches, unique flat-detection technology measures envelopes and small packages. Each dimension includes an overhead image for use during claim disputes on damaged packages. A color touchscreen display provides instant feedback, a live image, measurements, weight and operator functions for day-to-day use.
Specifications
|
Power Requirements: Communication Ports: Display: |
Accuracy: Software Integration: Temperature Range: |
Humidity: |
Measuring Capabilities based on Pole Assembly Height
| Model | XL at 1.2 m | XL at 1.5 m | XL at 2 m | |||
|---|---|---|---|---|---|---|
| Platform Distance | 48 in (1,200 mm) | 60 in (1,500 mm) | 80 in (2,000 mm) | |||
| Min/Max | Min | Max | Min | Max | Min | Max |
| Length | 1.2 in (30 mm) | 40 in (1,000 mm) | 1.2 in (30 mm) | 48 in (1,200 mm) | 8 in (203 mm) | 48 in (1,200 mm) |
| Width | 1.2 in (30 mm) | 24 in (600 mm) | 1.2 in (30 mm) | 32 in (800 mm) | 8 in (203 mm) | 32 in (800 mm) |
| Height | 0 in (0 cm) | 24 in (600 mm) | 0 in (0 mm) | 28 in (700 mm) | 4 in (102 mm) | 32 in (800 mm) |
| Division | 0.2 in (5 mm) | 0.2 in (5 mm) | 0.5 in (10 mm) | |||
|
Legal for Trade approved minimum and maximum measurements are available from the country specific certificate of approval. |
||||||

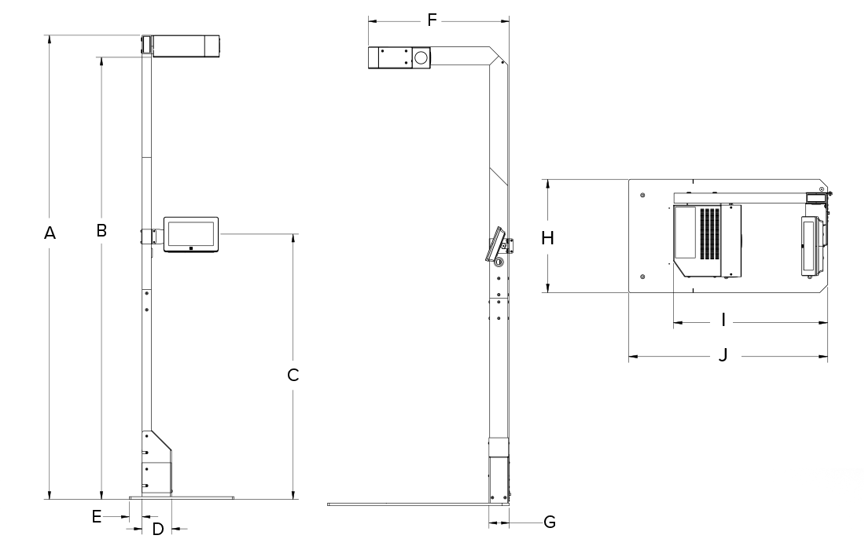

iDimension Plus, 1.5 m Dimensions
| iDimension Plus, 1.5 m | |||
|---|---|---|---|
| A | 63.20 in (1,605 mm) | F | 19.40 in (493 mm) |
| B | 60.20 in (1,529 mm) | G | 2.80 in (71 mm) |
| C | 36.10 in (917 mm) | H | 14.30 in (363 mm) |
| D | 4.00 in (102 mm) | I | 19.40 in (493 mm) |
| E | 1.80 (46 mm) | J | 25.00 in (635 mm) |
iDimension Plus XL Scanning Head Assembly Dimensions
| Dimensions | |||||
|---|---|---|---|---|---|
| A | 9.00 in (229 mm) | E | 2.00 in (51 mm) | I | 4.50 in (114 mm) |
| B | 8.50 in (216 mm) | F | 0.60 in (15 mm) | J | 1.50 in (38 mm) |
| C | 7.20 in (183 mm) | G | 1.60 in (41 mm) | K | 3.00 in (76 mm) |
| D | 3.30 in (84 mm) | H | 1.50 in (38 mm) | L | M4 × 0.7 threaded hole |
iDimension XL Mounting Bracket (pn 198708) Dimensions
| Dimensions | |||
|---|---|---|---|
| A | 7.37 in (187 mm) | D | 2× 0.28 |
| B | 4.12 in (105 mm) | E | 3× 0.19 |
| C | 3.14 in (80 mm) | ||
Optional iDimension Plus XL Floor Mount Stand Assembly Dimensions
| Dimensions | |
|---|---|
| A | 47.34 in (1,202 mm) |
| B | 123.13 in (3,128 mm) |
| C | 24.21 in (615 mm) |
Parcels less than 40 inches in length (1.2 m pole)
| Part # | Description | List Price |
|---|---|---|
| 222296 | cord,1.2M Pole Mount System, OIML/MID/EU/NMI/NTEP Approved | List Price: $7,245.00 |
| 222297 | with EU pwr cord,1.2m Pole Mount System, OIML/EU/MID/NMI/NTEP | List Price: $8,845.00 |
Parcels less than 48 inches (1.5 m pole)
| Part # | Description | List Price |
|---|---|---|
| 222298 | cord,1.5M Pole Mount System, OIML/MID/EU/NMI/NTEP approved | List Price: $7,245.00 |
| 222299 | with EU pwr cord,1.5M Pole Mount System, OIML/MID/EU/NMI/NTEP | List Price: $8,845.00 |
iDimension Plus XL
| Part # | Description | List Price |
|---|---|---|
| 222300 | OEM Kit with EU Pwr, Display and Cal Object, OIML/MID/EU/NMI/NTEP | List Price: $5,295.00 |
| 222301 | OEM Kit,EU pwr cable,Display and Cal Object, OIML/MID/EU/NMI/NTEP | List Price: $7,345.00 |
iDimension Plus XL Mounting Options
| Part # | Description | List Price |
|---|---|---|
| 174660 | 100/300/IQV/Plus, comes with Installation Kit (206583) and Mounting Kit for USB Display (184262). | List Price: $1,720.00 |
| 198708 | Plus hardware and cable assemly kit | List Price: $175.00 |
| 206583 | Plus hardware and cable assemly kit, Intl w/no US power cord | List Price: $175.00 |
| 184262 | Kit for USB display and 380/680/682 indicator | List Price: $145.00 |
Rice Lake BenchPro Compatible Scales - Postal Scale 12x14 in (350 x 356 mm) Weight Platter
| Part # | Description | List Price |
|---|---|---|
| 194625 | 1214-70lb dual range mild painted cover w RS232 to USB adapter | List Price: $875.00 |
Rice Lake BenchPro Compatible Scales - Shipping Scale 12x14 in (305 x 356 mm) Weight Platter
| Part # | Description | List Price |
|---|---|---|
| 184585 | Model BP 1214-75S, 150 x 0.05lb/75 x 0.02kg, Black Powder Coat Mild Steel Weight Platter | List Price: $875.00 |
Rice Lake BenchPro Compatible Scales - Shipping Scale 18x18 in (457 x 457 mm) Weight Platter
| Part # | Description | List Price |
|---|---|---|
| 202191 | Model BP 1818-75S, 150 x 0.05lb/75 x 0.02kg, Mild Steel Painted Weight Platter, 18 x 18 inch for use with iDim Plus pole mounts | List Price: $1,740.00 |
| 201730 | Model BP 1818-75S, 150 x 0.05lb/75 x 0.02kg, Ball Top Weight Platter, 18 x 18 inch Dimensions, IDim Plus | List Price: $2,140.00 |
| 202190 | Model BP 1818-75S, 150 x 0.05lb/75 x 0.02kg, Roller Conveyor Platter, Weigh Platter, 18 x 18 inch for use with iDim Plus | List Price: $1,925.00 |
Rice Lake BenchPro Compatible Scales - Shipping Scale 20x20 in (508 x 508 mm) Weight Platter
| Part # | Description | List Price |
|---|---|---|
| 182396 | Model BP 2020-150S, 300 x 0.1 lb/150 x 0.05kg, Mild Steel Weight Platter, 20 x 20 inch Dimensions | List Price: $1,950.00 |
| 182397 | Model BP 2020-150S, 300 x 0.1 lb/150 x 0.05kg, Ball Top Weight Platter, 20 x 20 inch Dimensions | List Price: $2,375.00 |
| 182398 | Model BP 2020-150S, 300 x 0.1 lb/150 x 0.05kg, Roller Conveyor Weight Platter, 20 x 20 inch Dimensions | List Price: $2,065.00 |
Rice Lake BenchPro Compatible Scales - Shipping Scale 24x24 in (610 x 610 mm) Weight Platter
| Part # | Description | List Price |
|---|---|---|
| 182400 | Model BP 2424-150S, 300 x 0.1 lb/150 x 0.05kg, Mild Steel Weight Platter, 24 x 24 inch Dimensions | List Price: $2,150.00 |
| 182401 | Model BP 2424-150S, 300 x 0.1 lb/150 x 0.05kg, Ball Top Weight Platter, 24 x 24 inch Dimensions | List Price: $2,615.00 |
| 182402 | Model BP 2424-150S, 300 x 0.1 lb/150 x 0.05kg, Roller Conveyor Weight Platter, 24 x 24 inch Dimensions | List Price: $2,265.00 |
Accessories
| Part # | Description | List Price |
|---|---|---|
| 180007 | Includes USB Hub, 5M cable, power adapter, North America | List Price: $280.00 |
| 180771 | assemblies, USB Hub for Worldship Interface | List Price: $430.00 |
| 205533 | C13, 5M length power cord | List Price: $45.00 |
| 95589 | BS 1363 (UK) Molded Plug To IEC 320-13 (CEE 22 Standard V) Molded Connector 8.2 ft (2.5 Meters) Harmonized 13 Amp | List Price: $35.00 |
| 162630 | 230VAC Australian Molded Plug to Pluggable C13, 8ft, 2.5m | List Price: $35.00 |
| 178501 | FTDI US232R-100, 3.28 ft, iDim Series for use with RLWS indicator and Postal Scales | List Price: $60.00 |
Barcode Scanner
| Part # | Description | List Price |
|---|---|---|
| 176307 | KBW, USB, Wand Emulation, RS-232, with USB cable Black | Consult |
| 206225 | Longe range, Honeywell 2105IXLR-3USB-CLHN, with USB cable and Charging Cradle | List Price: $1,800.00 |
Optional Integration Solutions
| Part # | Description | List Price |
|---|---|---|
| 180771 | assemblies, USB Hub for Worldship Interface | List Price: $430.00 |
| 203010 | App. (Previously iDim Desktop Wedge) for Windows PC. Download available at www.ricelake.com | Consult |
| 175812 | Webserver, database collection and integration program | List Price: $2,250.00 |
Optional Factory Service and Support
| Part # | Description | List Price |
|---|---|---|
| 202027 | iDimension Plus configuration and scale setup | List Price: $250.00 |
Extended Warranty - 2 year standard
| Part # | Description | List Price |
|---|---|---|
| 202030 | Additional One-Year for iDimension Plus | List Price: $750.00 |
