iQUBE²® Digital Diagnostic Junction Box
As of: Monday, July 13, 2026
Standard Features
- iQUBE2 board has four A/D channels
- Supports networking up to four boards, for 16 A/D channels; connection can be up to four separate platforms with a system total, or four separate scale systems
- Diagnostic routines for weighing errors and system health
- Cell tests for overloaded, underloaded, zero reference, drift, noise and unbalanced conditions
- Onboard status LEDs for communication and visual bi-color indication of cell health
- Cell emulator compensates for load cell failure until a repair can be made
- Cal-Match® algorithm automatically trims and calibrates the scale in one pass of test weights (stopping over each mount)
- Standard communications
- Option card slot for fiber optic, Ethernet TCP/IP, wireless TCP/IP, USB or RS-232/RS-485
- Communicates to 920i®, 1280, VIRTUi2® using ASCII (EDP) serial commands
Applications
- Truck, railroad, tank and hopper scales
- Multi-channel scales
Identify Problems Before They Happen
Rice Lake Weighing Systems’ iQUBE2® digital diagnostic junction box compares the output of each load cell to adjacent load cells, ensuring optimal performance and warning operators of weight irregularities. iQUBE2 converts any analog load cell system into a modern digital system, without replacing individual load cells.
Enhance the Performance of Any Scale System
iQUBE2 is ideal for systems using single or multiple scales with two or more load cells. Floor scales, hopper scales, tank scales, vehicle scales and dosing systems can all benefit from an upgrade to the iQUBE2 digital diagnostic junction box system.
With accelerated data transfer, batching and dosing applications can efficiently achieve target weights when speed and accuracy are critical.
Instant Alerts and Cell Emulation
Diagnostics can be viewed on the user interface and an email alert is sent in the event of a component error. If a load cell fails, the cell emulation feature calculates weight based on known comparisons to functional load cells, keeping your scale functional until the load cell can be replaced.
iQUBE² Digital Diagnostic Junction Box Specifications
|
Voltage Input: Analog Signal Input Range: Analog Signal Sensitivity: A/D Sampling Rate: Digital I/O: |
Communication Ports: Load Cell Inputs: Load Cell Excitation: Rating/Material: |
Temperature: Warranty: Approvals: |

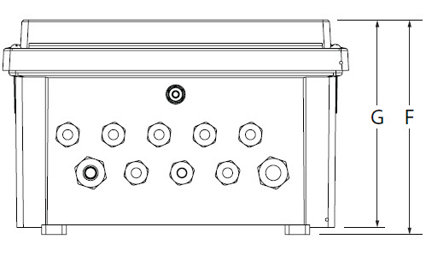

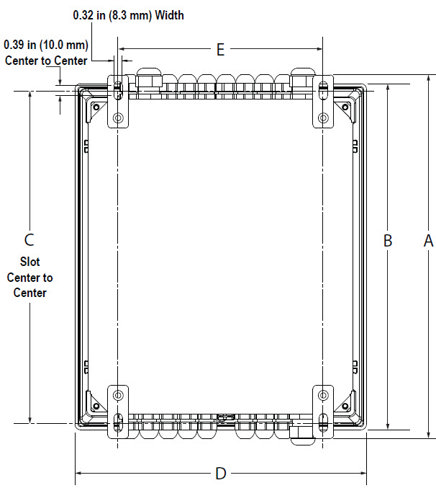

iQUBE² Digital Diagnostic Junction Box Dimensions
| Stainless Steel | |||
|---|---|---|---|
| A | 13.50 in (343 mm) | E | 8.00 in (203 mm) |
| B | 12.28 in (312 mm) | F | 6.29 in (160 mm) |
| C | 12.75 in (324 mm) | G | 6.20 in (157 mm) |
| D | 10.28 in (261 mm) | ||
| Polycarbonate Small | |||
| A | 12.13 in (308 mm) | E | 5.98 in (152 mm) |
| B | 11.45 in (291 mm) | F | 6.95 in (176 mm) |
| C | 10.90 in (268 mm) | G | 6.71 in (170 mm) |
| D | 9.32 in (237 mm) | ||
| Polycarbonate Large | |||
| A | 14.13 in (359 mm) | E | 7.99 in (203 mm) |
| B | 13.46 in (341 mm) | F | 7.02 in (178 mm) |
| C | 12.91 in (328 mm) | G | 6.79 in (172 mm) |
| D | 11.36 in (289 mm) | ||
With AC Power Supply
| Part # | Description | List Price |
|---|---|---|
| 108425 | Junction Box Small Polycarbonate Enclosure Installed 115/230 VAC Power Supply. | List Price: $1,365.00 |
| 108426 | Junction Box Large Polycarbonate Enclosure Installed 115/230 VAC Power Supply. | List Price: $1,575.00 |
| 108427 | Junction Box Large Polycarbonate Enclosure Installed 115/230 VAC Power Supply. | List Price: $2,625.00 |
| 108428 | Junction Box Small SST Enclosure Installed 115/230 VAC Power Supply. | List Price: $2,573.00 |
Without Power Supply
| Part # | Description | List Price |
|---|---|---|
| 108429 | Junction Box Small Polycarbonate Enclosure. | List Price: $1,260.00 |
| 108430 | Junction Box Large Polycarbonate enclosure. | List Price: $1,470.00 |
| 108431 | Junction Box Large Polycarbonate Enclosure. | List Price: $2,520.00 |
| 108432 | Junction Box, Small SST Enclosure. | List Price: $2,468.00 |
Conduit Adapter
| Part # | Description | List Price |
|---|---|---|
| 92734 | Bonded, 1/2 in NPT Grip Cap To 92574 Coupling | List Price: $27.00 |
| 92735 | Bonded, 3/8in NPT Cap To Coupling 92575 | List Price: $27.00 |
Power Supply, Transient Board and Enclosure
| Part # | Description | List Price |
|---|---|---|
| 108433 | 4 Channel CPU. | List Price: $1,050.00 |
| 97475 | 9-36VDC Input 25 Watt | List Price: $255.00 |
| 108434 | 12VDC Output in FRP Enclosure, Remote Power Supply | List Price: $473.00 |
| 109396 | Protection RoHS Compliant | List Price: $95.00 |
| 110949 | Includes Mounting Bracket for IQube2 Back Plate. | List Price: $116.00 |
| 161954 | FRP enclosure with 161936 industrial hotspot, power supply, and bulk head connector (w/ ground strap) for antenna. | List Price: $3,195.00 |
| 215178 | Mounting feet for new style JB4SP,JB4SPT,JB4EP,JB4EPT,JB8SP JB8SPT AND iQUBE enclosures. Set of 4 and includes 10-32 screws NOT for Hoffman enclosures | List Price: $15.00 |
Communication Cards
| Part # | Description | List Price |
|---|---|---|
| 108579 | Option Board | List Price: $300.00 |
| 77142 | Interface 720i, 820i, iQube, CW90, CW90X | List Price: $545.00 |
| 206272 | RS232/WiFi Interface 802.11 A/B 10/100 XPico for CW90,720i,iQube2 | List Price: $610.00 |
| 93245 | PC Connection, includes 1 meter Type A to mini-B cable | List Price: $225.00 |
| 77143 | iQube Internal Mount | List Price: $231.00 |
| 77788 | Option,includes Part 73997 and assembly to Part 78908 by DCA, 920i Internal Mount, iQube System. | List Price: $235.00 |
Duplex Fiber (Max Run 350 ft)
| Part # | Description | List Price |
|---|---|---|
| 78026 | 100 ft. includes polishing kit | List Price: $185.00 |
| 78027 | 200 ft. includes polishing kit | List Price: $350.00 |
| 78910 | Fiber, Duplex 1.00mm Core 2.2mm OD Fluorinated Polymer Jacket Price Per Foot. UL Recognized | List Price: $1.85 |
Home Run Cable
| Part # | Description | List Price |
|---|---|---|
| 116587 | EL166 16 ga 6 Conductor | List Price: $2.65 |
Software
| Part # | Description | List Price |
|---|---|---|
| 108436 | Software | List Price: $578.00 |
| 112262 | Update | List Price: $69.00 |
920i Indicators for use with iQube2, requires version 4 software
| Part # | Description | List Price |
|---|---|---|
| 77790 | ASSY 115 VAC, No A/D Board | List Price: $3,195.00 |
| 77791 | ASSY, 230 VAC, No A/D Board | List Price: $3,195.00 |
| 93243 | Enclosure Universal Assy, 115 VAC, without A-D Board | List Price: $3,445.00 |
| 93244 | Enclosure Universal Assy, 230 VAC, without A-D Board w/ European CEE7/7 Power Cord | List Price: $3,445.00 |
| 77792 | Mount Assy, 115 VAC, No A/D Board | List Price: $3,195.00 |
| 77793 | Mount Assy, 230 VAC, No A/D Board | List Price: $3,195.00 |
| 77794 | Assy, 115 VAC, No A/D Board | List Price: $4,095.00 |
| 77795 | Assy, 230 VAC, No A/D Board | List Price: $4,095.00 |
1280 Indicators for use with iQUBE2
| Part # | Description | List Price |
|---|---|---|
| 189623 | Enclosure Panel Keyless 7" AC Power Supply No Power Cord Supplied Display Type Standard Slot 1 Open Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open | List Price: $3,180.00 |
| 188526 | Enclosure Panel Keyless 7" AC Power Supply No Power Cord Supplied Display Type High Visibility Slot 1 Open Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open | List Price: $3,280.00 |
| 188395 | Enclosure Panel Keyless 12" AC Power Supply No Power Cord Supplied Display Type High Visibility Slot 1 Open Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open | List Price: $4,345.00 |
| 181073 | Enclosure Panel Mount DC Power Supply No Power Cord Supplied Display Type Standard Slot 1 Open Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open | List Price: $3,180.00 |
| 178473 | Enclosure Panel Mount AC Power Supply No Power Cord Supplied Display Type High Visibility Slot 1 Open Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open | List Price: $3,280.00 |
| 205677 | Enclosure Wall Mount AC Power Supply U.S. Wall Mount Power Cord Display Type Standard Slot 1 Open Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open | List Price: $3,780.00 |
| 171667 | Enclosure Wall Mount AC Power Supply U.S. Wall Mount Power Cord Display Type High Visibility Slot 1 Open Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open | List Price: $3,880.00 |
| 174750 | Enclosure Panel Mount AC Power Supply No Power Cord Supplied Display Type Standard Slot 1 Open Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open | List Price: $3,180.00 |
| 174207 | Enclosure Universal AC Power Supply Europe Universal Power Cord Display Type Standard Slot 1 Open Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open | List Price: $3,380.00 |
| 171582 | Enclosure Universal AC Power Supply U.S. Universal Power Cord Display Type Standard Slot 1 Open Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open | List Price: $3,380.00 |
| 188713 | Enclosure Universal DC Power Supply No Power Cord Supplied Display Type Standard Slot 1 Open Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open | List Price: $3,380.00 |
| 171540 | Enclosure Universal DC Power Supply No Power Cord Supplied Display Type High Visibility Slot 1 Open Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open | List Price: $3,480.00 |
| 172419 | Enclosure Universal AC Power Supply U.S. Universal Power Cord Display Type High Visibility Slot 1 Open Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open | List Price: $3,480.00 |
