Ishida IP-Ai Label Printer with Remote Scale Base

Power:
110 to 120 VAC, 50/60 Hz

Power Consumption:
In operation: 120 W
Stand-by: 50 W

Resolution:
30 lb base, 3,000 display divisions maximum
60 lb base, 6,000 display divisions maximum

Communications:
LAN
Static/DHCP
Optional Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz
Security: WEP/WPA/WPA2

Input/Output:
LAN
Four USB-A (service, transaction data)
SD card (for transaction data, 16GB max)

Operating System:
Linux

Memory Capacity:
SSD 2 GB

Preset Keys:
99 dynamically programmed groups with 99 subpages
19 tactile function keys

Display:
Operator: Resistive thin film analogue touch panel, TFT LCD color touchscreen with LED backlight with SVGA
12.1 in (800 × 600 px)
Unit price: six digits
Tare: four digits
Weight: five digits
Total price: eight digits

Printer:
Printhead: 3.1 in (80 mm) direct thermal, effective 3 in (78mm)
Resolution: 300 dpi (12 dot/mm)
Speed: 5.9 in/sec (150 mm/sec) max
Min. weight: 30 lb, 0.015 lb (0.006 kg) 60 lb, 0.03 lb (0.015kg)
Formats: customizable, up to 999
Barcodes: UPC, JAN, EAN, EAN128, CODE128, ITF, GS1, Custom

Label Size:
Type: Die-cut
Width: 1.5 to 3.1 in (38 to 80 mm)
Length: 1.2 to 7.9 in (30 to 200 mm)

Label Roll:
I.D.: 3.0-in (76 mm) min
O.D.: 9.0-in (230 mm) max
Backing width: 3.2-in (82 mm) max

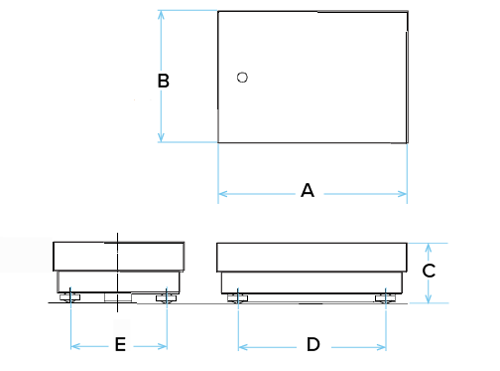

Platter:
30 lb: 16 × 10 in (406 × 254 mm)
60 lb: 15.5 × 10.5 in (394 × 267  mm)

Weight:
Approx. 55 lb (25 kg)

Temperature:
Operating: 32 °F to 104 °F (0 °C to 40°C)

Humidity:
20 to 85% (without condensation)

Warranty:
One-year limited

Approvals:
NTEP 06-029
cULus Listed
