Ishida Uni-3 Remote Scale Base

As of: Tuesday, May 20, 2025
Save or Print to PDF
Portals 0 Products Fe3a4e6e5ba54017909cd3dd26d6e0a7 Orig (1)

Standard Features

  • Blue alphanumeric LCD display (23 digits, 16 segments) or backlit alphanumeric LCD display (23 digits, 7 segments)
  • Dual-range weighing (0 to 15 lb × 0.005 lb/15 to 30 lb × 0.01 lb)
  • Side-load label
  • Fast printing speed (3.9 in/100 mm per second)
  • Multiple label formats
  • Static TCP/IP Ethernet communication
  • 84 one-touch preset keys, 168 presets (assign two items/key)
  • 2 MB memory
  • Proportional tare
  • Compatible with third-party communication software, including Upshop's InterScale® and Invafresh's ePLUM®
  • 2020 nutrition labeling

Approvals

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

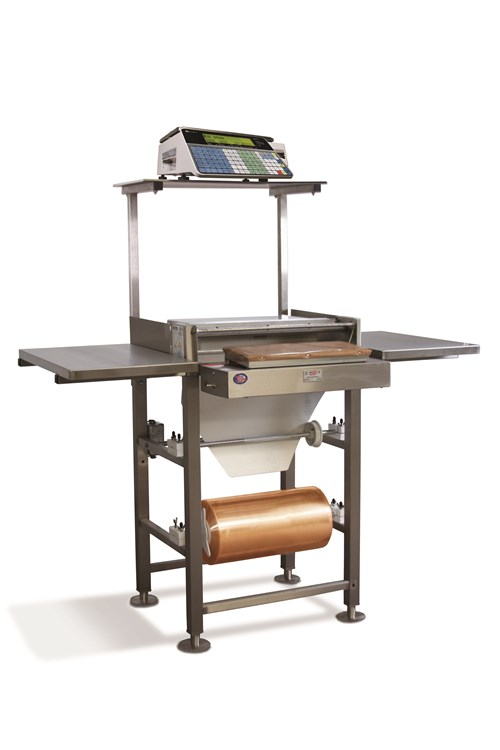

A Wrapping Station Designed for Prepack Operations

Networking capabilities and user-friendly operation make the Uni-3 with remote scale base system ideal for prepack operations. The Uni-3 has two display types at attractive price points. Choose from multiple label formats for increased productivity and versatility. With standard Ethernet or optional wireless connectivity, the Uni-3 offers extraordinary power at an exceptional value.

Ishida Uni-3 Remote Scale Base Specifications

Weighing Resolution:
3,000 display divisions maximum

Remote Scale Base Capacity
(Dual Range):
15 × 0.005lb/30 × 0.01lb

Remote Scale Base Capacity
(Single Range):
30 × 0.01lb

Display Types:
L1: LCD, blue, alphanumeric
(23 digits 16 seg)
L2: LCD, backlight, alphanumeric
(192 × 16DM + 23 digits 7 seg)

Display Items:
Tare: Four-digits
Unit price: Five-digits
Total price: Six-digits

Preset Keys:
84 one-touch preset keys 168 presets (assign two items/key)

Memory:
2MB

Communications:
TCP/IP 10/100 Base T Ethernet

Platter:
15.5 × 9.5 in (394 × 241 mm)

Printing Speed:
3.9 in (100 mm) per second

Printing:
Direct thermal 2.2 in (56 mm)

Label Size:
Width: 1.5 to 2.5in (38 to 64mm)
Length: 1.2 to 6.9in (30 to 175mm)



Label Roll:
Inside diameter: 1.6 in (40 mm) min
Outside diameter: 3.9 in (100 mm) max

Label Backing Paper:
Width: Up to 2.6 in (66 mm)

Power Supply:
AC100 to 240V, 50/60Hz

Power Consumption:
Stand-by: 50W
In operation: 100W

Classification:
NTEP CC 07-005
UL listed

Warranty:
One-year limited

Parts

Part # Description
170316 Retail Scale, Uni-3L1i Bench, with remote scale base, 0-15x0.005lb, 15-30x0.01lb Ishida
170317 Retail Scale, Uni-3L1i Pole, with remote scale base, 0-15x0.005lb, 15-30x0.01lb Ishida
170318 Retail Scale, Uni-3L2i Bench, with remote scale base, 0-15x0.005lb, 15-30x0.01lb Ishida
170319 Retail Scale, Uni-3L2i Pole, with remote scale base, 0-15x0.005lb, 15-30x0.01lb Ishida

Options

Part # Description
Ishida Uni-3 Remote Scale Base Misc Options
47670 Retail Scale OPT,Base Unit Scalemate 27 Deep x 23 Wide x 32 High Scale Shelf 36 inch Overall Height 2 Roll 18 in Max Roll Size 750 Watt 6 x 15 in Heat Pad w/Cover 115 VAC 12ft Power Cord Ishida
47672 Retail Scale OPT,Wrap Station Wing Left, SM20ES, 200ES, 14 x 22 in, (Scalemate Hand Wrap Station), Heat Seal, Ishida
46927 Retail Scale OPT,Wrap Station Wing Right, SM20ES, 200ES, 14 x 22 in, (Scalemate Hand Wrap Station), Heat Seal, Ishida
53962 Retail Scale OPT,Wrap Station Wing Right w/Hood Scalemate 14 x 34 in Ishida
101139 Scale Stand,14x20 Plastic Board Includes Mounting Hardware Ishida BC-4000 AC-4000 SR-2000a Uni-7 series
53963 Retail Scale OPT,Wrap Station All Purpose Shelf, SM20ES, 200ES 12x24 or 15x24, (Scalemate Hand Wrap Station), Heat Seal, Ishida
53866 Non-Stick Cover,PTFE, Teflon, 6x15, Sealing Plate, (Scalemate Hand Wrap Station), Ishida
155176 Option,UNI-7 RP POP Label Dispenser with Mounting Hardware for ScaleMate
105346 Label,Roll Retail Blank DTL 64mm x 85mm (2.52 x 3.34) Small Core 425 LPR 12 RPC Ishida
Communication
168751 License,Uni-3 SLP5 Lite ScaleLink Pro 5 lite Uni-3 item management maintenance
168745 Option,Internal Wireless Uni-3 bench and pole models, 802.11b/g, 305mm Harness, Kit with Five M4x8 Button Head Screws Ishida
152628 License,ScaleLink Pro 5 SLP5 Item Management, Maintenance, Ishida
78860 Cable,Ethernet Cross RJ45 to RJ45, 7FT
Manuals and Service Tools
166737 LIT,Operation Manual Ishida Uni-3 Series Price Computing Scale with Printer (English)
166736 LIT, Manual Uni-3 Tech Uni-3 Technical Manual
160906 USB Memory, Stick 1G Hagiwara, UDG4-1GDRJS, Ishida
