Load Cups
As of: Sunday, July 26, 2026
Standard Features
- Ball and cup load introduction provides point loading for maximum accuracy
- For use with most popular single-ended beam load cells
- Constructed of 440C stainless steel
Choose from a variety of sizes and dimensions, even replacements cups for specific load cells. These are used with ball bearings and load receivers.

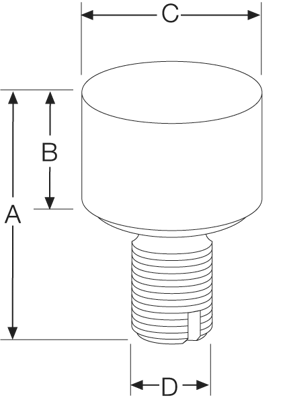

Load Cup Dimensions
| Part # | A | B | C | D |
|---|---|---|---|---|
| 31911 | 1.70 in | 0.54 in | 1.07 in | 1/2-20 UNF |
| 212364 | 1.70 in | 0.54 in | 1.07 in | M8 |
| 33654 | 1.12 in | 0.54 in | 0.78 in | 1/2-20 UNF |
| 33653 | 1.50 in | 0.80 in | 1.12 in | 3/4-16 UNF |
| 33652 | 2.00 in | 0.85 in | 1.75 in | 1-12 UNF |
| 33651 | 2.85 in | 0.85 in | 1.75 in | 1-12 UNF |
| 33650 | 2.85 in | 0.85 in | 1.75 in | 1-14 UNF |
| 33647 | 2.75 in | 0.50 in | 0.75 in | 1/2-20 UNF |
| 72364 | 1.78 in | 0.53 in | 0.78 in | 1/2-20 UNF |
| 69431 | Replacement cup for Cardinal® SCA-50,000 load cell | |||
| Part # | Description | List Price |
|---|---|---|
| 31911 | Zone SST Hardened 17116 OD | List Price: $58.00 |
| 33654 | 1-1/8 | List Price: $49.00 |
| 33653 | 1-17/32 | List Price: $50.00 |
| 33652 | 1-31/32 | List Price: $118.00 |
| 33651 | 2-27/32 1-12UNF Thread | List Price: $165.00 |
| 33650 | 2-27/32 1-14UNS Thread | List Price: $165.00 |
| 33647 | 2-3/4 | List Price: $59.00 |
| 72364 | 25/32Dia x 1-25/32 Long SST | List Price: $69.00 |
| 69431 | 440 C for SCA 50k Load Cell | List Price: $143.00 |
| 212364 | Hardened like pn. 31911 with M8 threads | List Price: $70.00 |
