Load Pin - 1.25 Inch 30K Stainless Steel, Environmentally Sealed

Rice Lake Weighing Systems

As of: Saturday, August 22, 2026

1 US 190168 Onboard Loadcell (1)

Standard Features

WARNING: Cancer and Reproductive Harm California Proposition 65

Load Pin - 1.25 Inch 30K Specifications

Seal Type:
Environmentally sealed

Output:
0.5 to 4.5 V

Connector Type:
Turck, M12 4-pin male

Connector Pin Out:
Pin 1: Power +
Pin 2: Power ground
Pin 3: Signal +
Pin 4: Signal ground

Material:
Stainless Steel 17-4 ph

Warranty:
One-year limited

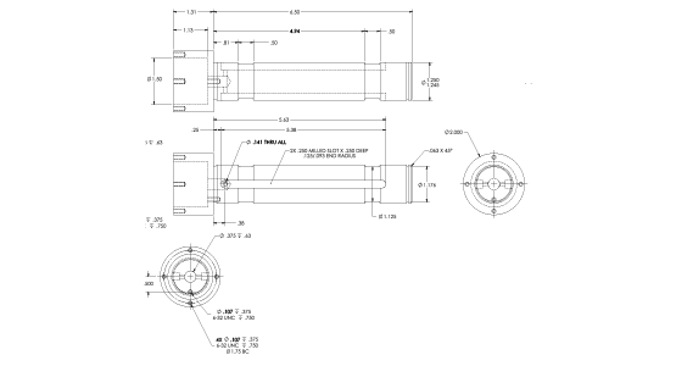

Load Pin - 1.25 Inch 30K Dimensions

Part #DescriptionList Price
190168Long, 0.5 to 4.5 V Output, M12 Commercial Vehicle Class Connector 30,000 lbs Rated Capacity x 2 Safety Factor 17-4PH SSTList Price: $1,350.00
