MAS-LC Stationary Animal Scale

As of: Tuesday, June 17, 2025
Save or Print to PDF
Portals 0 Products 85588588Dee944a28fc44fefaa0b78d9 Orig (1)

Standard Features

  • Field configurable swinging gates that open left or right
  • Bolt-on racks and swinging gates
  • Durable X-Lug or X-Plank rubber floor over a steel I-beam deck
  • Solid 48-inch kick panel sides
  • Solid 48-inch kick panel swinging gate
  • Spring-loaded latch on swinging gates
  • Rugged all-weather powder paint
  • Scale collapses for shipping
  • Factory assembly at no charge

Approvals

NTEP Logo
LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

Durable Electronic Livestock Scales

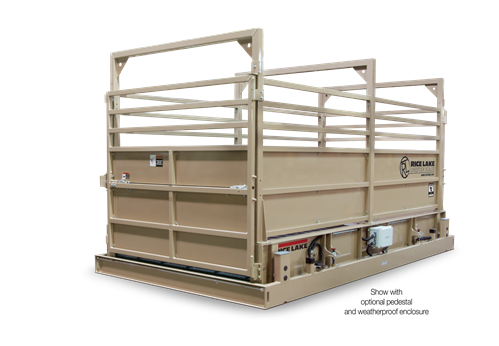

Rice Lake’s MAS-LC stationary livestock scale combines the accuracy of fully electronic weighing technology with weighbridge designs typically found in heavy-capacity vehicle scales. This extreme duty scale is constructed with steel I-beams, using W 16-inch x 26 pound-per-foot structural main beams and S 4-inch x 7.7 pound-per-foot cross beams with 1.5 x ¼ inch stringers between the beams, making it extremely durable. This weighbridge can last a generation or longer.

The MAS-LC stationary livestock scale offers either X-Lug or X-Plank flooring for unmatched traction in wet and slippery conditions. Both styles are made from durable, recycled plastic and rubber material that will never harbor bacteria and moisture, rather than wood flooring that can easily rot. X-Lug flooring provides a deep, aggressive tread and X-Plank flooring utilizes a less aggressive, wheel-accessible tread.

Constructing High-Quality Electronic Livestock Scales

The MAS-LC is certified for commercial use in both the United States and Canada. Certified Legal for Trade scales are held to exact design characteristics, providing durable scales with high-quality materials. Add a choice of digital weigh centers, printers or remote displays and you will have an easy-to-use system that will provide years of proven cattle weighing performance.

MAS-LC Specifications

Full Scale Capacity:
25,000 lb, 5 lb increments

Racks and Gates:
Constructed of three inch steel main tubes; two-inch steel support tubes
Two end swing gates with latch (gates swing outward from scale)

Height:
Ground to top of swinging gate:
6 ft 7 in
Ground to top of up and over rack: 8 ft 1 in
Ground to weigh platform:
8 in

Warranty:
Two-year limited warranty on the weighbridge
Two-year parts and electronics warranty

Approvals:
NTEP 99-091
Measurement Canada AM-5284

Parts

Part # Description
X-Lug Flooring
192672 13 x 8 LC AG Scale Footprint: 154in long and 101in wide. 25,000 LB CAPACITY - (2017 Design Changes) X-Lug
192670 15 x 8 LC AG Scale Footprint: 176in long and 101in wide. 25,000 LB CAPACITY - (2017 Design Changes) X-Lug
192669 17 x 8 LC AG Scale Footprint: 200in long and 101in wide. 25,000 LB CAPACITY -(2017 Design Upgrades) X-Lug
192668 19 x 8 LC AG Scale Footprint: 224in long and 101in wide.25,000 LB CAPACITY -(2017 Design Upgrades) X-Lug
192665 22 x 8 LC AG Scale Footprint: 258in long and 101in wide. 25,000 LB CAPACITY - (2017 Design Changes) X-Lug
192664 22 x 10 LC AG Scale Footprint: 259in long and 131in wide. 25,000 LB CAPACITY - (2017 Design Changes) X-Lug
X-Plank Flooring
191804 13 x 8 LC AG Scale Footprint: 154in long and 101in wide. 25,000 LB CAPACITY - (2017 Design Changes) X-Plank
191803 15 x 8 LC AG Scale Footprint: 176in long and 101in wide. 25,000 LB CAPACITY - (2017 Design Changes) X-Plank
191566 17 x 8 LC AG Scale Footprint: 200in long and 101in wide. 25,000 LB CAPACITY -(2017 Design Upgrades) X-Plank
185865 19 x 8 LC AG Scale Footprint: 224in long and 101in wide.25,000 LB CAPACITY -(2017 Design Upgrades) X-Plank
191805 22 x 8 LC AG Scale Footprint: 258in long and 101in wide. 25,000 LB CAPACITY - (2017 Design Changes) X-Plank
191806 22 x 10 LC AG Scale Footprint: 259in long and 131in wide. 25,000 LB CAPACITY - (2017 Design Changes) X-Plank
Custom Sizes - Legal For Trade Application Parameters for MAS-LC Series CC 99-091
Class III-L Applications: Livestock (multi-animal) up to 25,000 lb, 5 lb increments

Options

Part # Description
215306 Indicator,482AG LCD Display, with 115VAC NEMA 5-15 Plug Stainless Steel Enclosure, with Quick Connect, NO Battery
131436 Weigh Center,920i with Printer and Cabling MAS-M AG Scale
205324 Weigh Center,920i with Printer and Cabling MAS-M AG Scale, AC Powered
167689 Indicator,920i Cattle 920i Digital Weight Indicator Single Channel With Group Animal Weighing Software 115 VAC
169478 Indicator,920i Cattle 920i Digital Weight Indicator Single Channel With Group Animal Weighing Software 12VDC
156758 Adaptor,Box,AC/DC Portable Livestock Scales
23113 Printer,Ticket TMU295 Epson Cool White 24VDC W/115-230VAC External Power Supply
15547 Cable Assy,Universal Serial Interface (Both RS232/20mA) 25 Pin D-Sub Male To Blunt End 25-pin side-3-Red, 7-Black, 4 & 5 jumpered, 9-Green, 10-White
71630 Ticket,Print 4-1/4x7 in 2 Part Carbonless, White Cover & Yellow Copy Attached at Top Rice Lake Scale Ticket 500/PKG
177788 CATTLE SCALE TRANSIENT PK Transient Protection Package, Cattle Scale
127561 Cable ASSY,4 Pin Female CONN 192 Inch with Dust Cap for Animal Scale Indicator
176542 Cable ASSY,AG Cable Quick Connect 4 Pin Male
