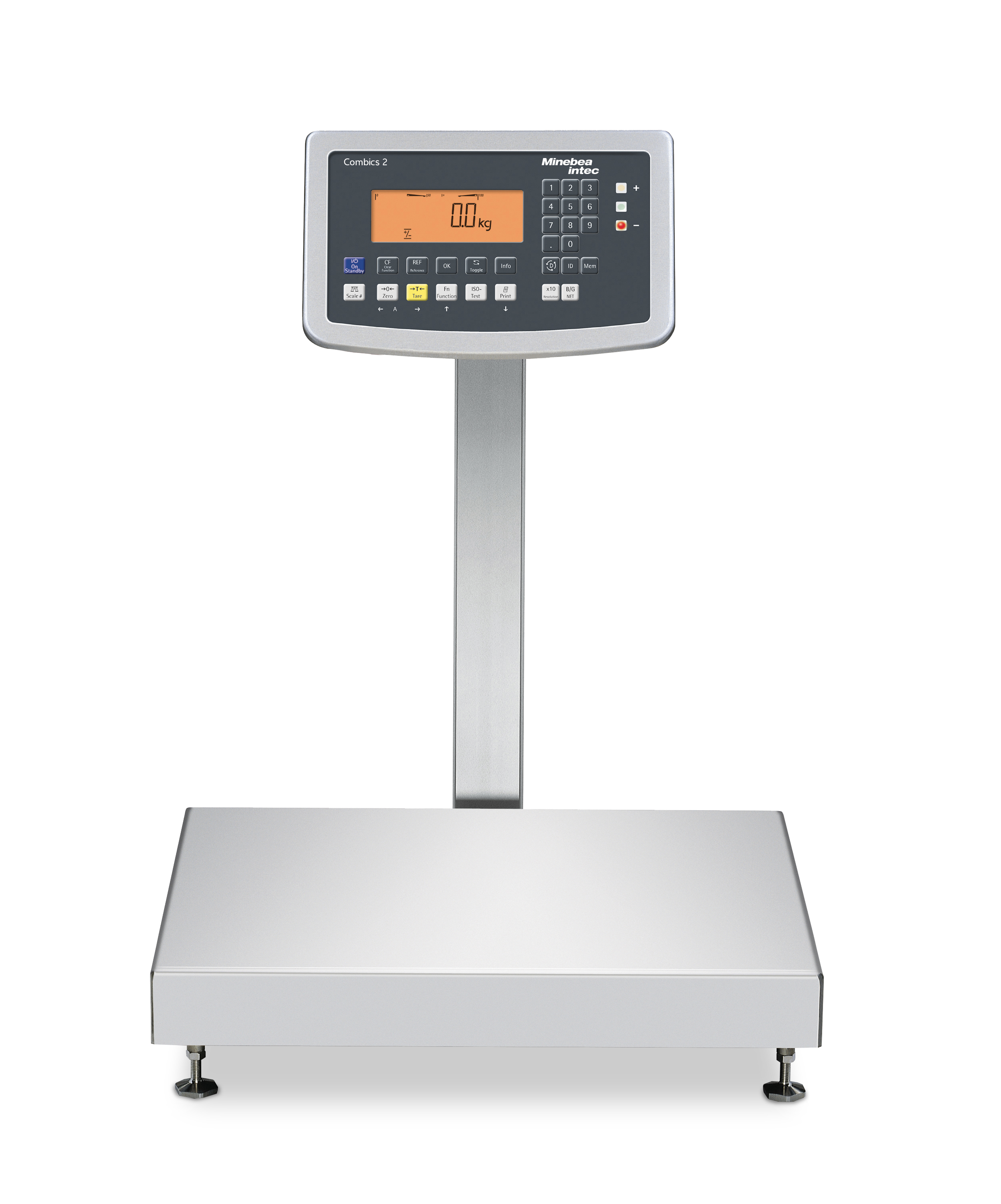

Minebea Intec Combics 2 Complete Scale System

  • Amber backlit LCD display, 0.8 in, 13 segment
  • External calibration routine
  • RS-232C
  • Numeric keypad (with two IDs) for entering identifier codes and preset tares
  • Info key for quick and easy display of tare input and ID codes
  • Date/time fully integrated
  • Three built-in LED checkweighing lights
  • Bar graph weighing range indicator
  • Optional bar code scanner for preset tare, reference weight and ID entry
  • Stored customer-specific data records
  • Two scale connections, analog or digital

Supply Voltage:
9 V

Power Requirements:
120 to 240 VAC, 17 W / 23 VA maximum

Indicator Housing:
AISI 304 stainless steel

Indicator Dimensions:
(L × W × H)
11.9 × 7.4 × 3.5 in
(302.3 × 188 × 89 mm)

Operating Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

Cable Length:
10 ft

Warranty:
Two-year limited
Accessories: one-year limited

Resources / Downloads

Title Download Email
Midrics 2 Series Catalog Page Download Email

Title Version Revision Download Email Category Archived
Sartorius Intec Midrics Series Manual Download Email Bench Scales|Platform Scales No

Title Collateral Wizard Request Download Email Category
Combics 2 Download Email Precision Industrial|Indicators / Controllers

Parts

Mild Steel with CAISL2-U

Part # Description List Price Cart
156409 Scale,CAW2P1U-10CC-I Minebea, 10x10in base, 15lb x 0.0005lb (6kg x 0.0002), Base IP65, Combics 2 Indicator IP44

List Price: $2,384.00

156414 Scale,CAW2P1U-50DD-I Minebea, 12x12in base, 60lb x 0.002lb (30kg x 0.001), Combics 2, Base IP65, Indicator IP44

List Price: $2,421.00

156420 Scale,CAW2P1U-100EE-I Minebea, 18x18in base, 150lb x 0.005lb (60kg x 0.002), Base IP65, Combics 2 Indicator IP44

List Price: $2,780.00

156423 Scale,CAW2P1U-250GG-I Minebea, 24x24in base, 300lb x 0.01lb (150kg x 0.005), Base IP65, Combics 2 Indicator IP44

List Price: $4,244.00

Stainless Steel with CAIS2-U

Options

Part # Description List Price Cart
156440 Column,YDH01CWSUS Minebea Post Mount Assembly, 10x10in platform, 13in High, SST

List Price: $248.00

156441 Column,YDH02CWSUS Minebea Post Mount Assembly, 12x12in platform, 19in High

List Price: $266.00

156442 Column,YDH03CWSUS Minebea Post Mount Assembly, 18x18in platform, 29in High

List Price: $307.00

171727 Bracket,Bench Mount Fits 10x10 in, 12x12 in and 18x18 in Combics platform, YDH12CWSUS

List Price: $106.00

105607 Kit,Wall Mount Combics Tiltable SST YDH02CISUS

List Price: $106.00

Consult Power Supply, 69CW0126

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
