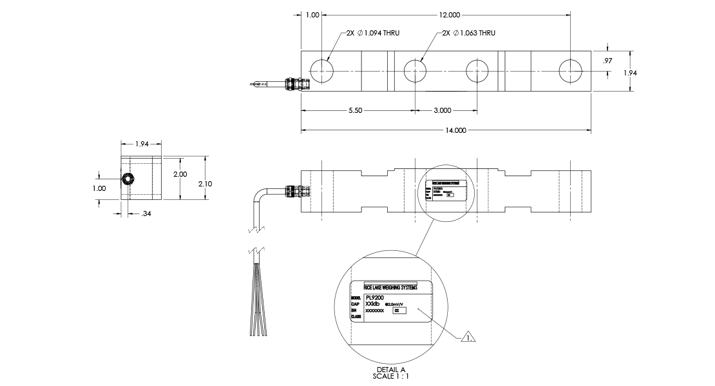

PL9200-25K Stainless Steel, Hermetically Sealed Load Cell

As of: Monday, July 27, 2026

The PL9200 onboard weighing load cell is hermetically sealed with an IP69 rating.

WARNING: Cancer and Reproductive Harm California Proposition 65

PL9200-25K Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
700 (nominal)

Input Resistance:
736 (nominal)

Material/Finish:
Stainless steel

Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

Rated Excitation:
15 VDC (5 to 10 V recommended)

Non-linearity:
±0.25% full scale

Insulation Resistance:
5,000 mega ohms at 50 VDC

Seal Type:
Hermetically sealed, IP69

Cable Length:
25 ft

Wire Color Code:
Red +Excitation
Green +Signal
Black -Excitation
White -Signal
Yellow Shield

Warranty:
One-year limited

Part #	Description	List Price
209603	Double Ended Shear Beam, 2.0 mV/V, SST Element, IP69, OBW, 25 ft, 22 AWG 4 conductor PVC cable	List Price: $1,195.00
210812	Double Ended Shear Beam, 2.0 mV/V, SST Element, IP69, OBW, 25 ft, 22 AWG 4 conductor PVC cable	List Price: $1,195.00
