Rice Lake Analog Retrofit Kit for Mettler Toldeo PDX
As of: Monday, July 27, 2026
Standard Features
Complete Kit Includes
- Eight or ten Rice Lake NTEP Certified stainless steel, hermetically sealed, rocker column load cells
- Upper and lower cups
- Grounding straps
- NEMA Type 4X signal trim junction boxes with transient protection
- 100 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
- Load cells are NTEP Certified 1:10,000 divisions, Class IIIL*
- Converts Mettler Toldeo PDX digital scales to analog
- Load cells have built-in surge protection and rated to IP69K
- Stainless steel overbraid cable
- Two-year limited warranty
*Consult your local Weights & Measures Authorities for local Legal for Trade requirements
Applications
- Mettler Toldeo PDX digital truck scale conversion

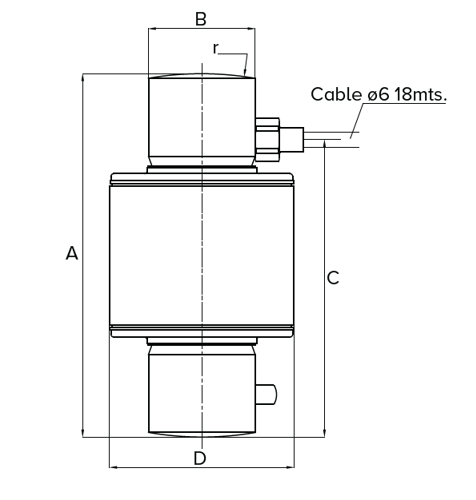

Dimensions
| Rated Capacity | A | 0 B | C | D | r |
|---|---|---|---|---|---|
| t/mm Analog Load Cells | |||||
| 15 | 150.0 | 44.0 | 123.0 | 76.0 | 130.0 |
| 20 | 150.0 | 44.0 | 123.0 | 76.0 | 130.0 |
| 25 | 150.0 | 44.0 | 123.0 | 76.0 | 150.0 |
| 30 | 150.0 | 44.0 | 123.0 | 76.0 | 160.0 |
| 40 | 150.0 | 44.0 | 123.0 | 76.0 | 180.0 |
| 50 | 150.0 | 44.0 | 123.0 | 76.0 | 180.0 |
| Part # | Description | List Price |
|---|---|---|
| 227964 | Kit-PDX. Includes 8-RL82025-50t SST load cells w/lightning protection, upper and lower SST cups, 1-JB8SPT junction box and 100ft of EL147HE homerun cable. | List Price: $8,455.00 |
| 227965 | Kit-PDX. Includes 10-RL82025-50t SST load cells w/lightning protection, upper and lower SST cups, 2-JB8SPT junction boxes and 100ft of EL147HE homerun cable. | List Price: $11,035.00 |
