Rice Lake RL20025A Alloy Steel, S-beam Load Cell

As of: Monday, August 24, 2026

Standard Features

Ideally suited for scale conversions and general-purpose weighing. Compact and rugged design. Capacities range from 25 to 20,000 lb, with cable lengths available in 20, 30 or 35 ft, depending on the module.

Approvals

WARNING: Cancer and Reproductive Harm California Proposition 65

RL20025A Load Cell Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (±3) ohm

Input Resistance:
385 (±5) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft
30 ft (pn 226952 and 226953)
35 ft (pn 226951)

Cable Diameter:
0.200 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
Two-year limited

Approvals:
NTEP
cFMus

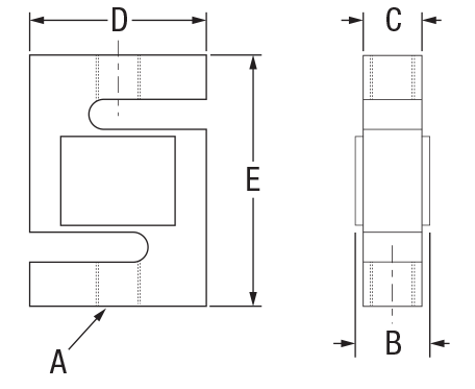

RL20025A Load Cell Dimensions

Rated Capacity	A	B	C	D	E
lb/in
25 to 300	1/4-28 UNF	0.75	0.50	2.00	2.50
500 to 1,500	1/2-20 UNF	1.00	0.75	2.00	2.50
2,000 to 2,500	1/2-20 UNF	1.25	1.00	2.00	2.50
3,000	1/2-20 UNF	1.25	1.00	3.00	4.00
5,000 to 10,000	3/4-16 UNF	1.25	1.22	3.00	4.00
15,000	1-12 UNF	1.50	1.25	4.00	5.50
20,000	1 1/4-12 UNF	2.25	2.00	5.00	7.00

Part #	Description	List Price
226932	25lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $290.00
226933	50lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $290.00
226934	75lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $290.00
226935	100lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $290.00
226936	150lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $290.00
226937	200lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $290.00
226938	250lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $290.00
226939	300lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $290.00
226940	500lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $290.00
226941	750lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $290.00
226942	1000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $290.00
226943	1500lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $290.00
226951	2000lb 35ft 3mv/v 350 0/+.2% 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $358.00
226944	2000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $290.00
226945	2500lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $290.00
226946	3000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $334.00
226952	5000lb 30ft 3mv/v 350 0/+.2% 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $505.00
226947	5000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $466.00
226948	10000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $466.00
226949	15000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $588.00
226953	20000lb 30ft 3mv/v 350 0/+.2% 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $993.00
226950	20000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $927.00

30ft or 35ft Cable (trimmed outputs and are used in many batch plants)

Part #	Description	List Price
226951	2000lb 35ft 3mv/v 350 0/+.2% 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $358.00
226952	5000lb 30ft 3mv/v 350 0/+.2% 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $505.00
226953	20000lb 30ft 3mv/v 350 0/+.2% 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67 Alloy	List Price: $993.00

Conduit Adapter Kit (must be factory installed to maintain warranty)

Part #	Description	List Price
31533	3/8-24UNF Thread Nipple	List Price: $40.00
31534	1/4-18 NPT 3/8-24UNF-ZA	List Price: $40.00
