Rice Lake RL20025SS Stainless Steel, S-beam Load Cell

As of: Monday, August 24, 2026

Standard Features

For suspended applications or mechanical scale conversions, this model provides the additional protection of stainless steel necessary in dry, corrosive environments. Available in capacities ranging from 50 to 20,000 lb with 20 ft of load cell cable.

Approvals

WARNING: Cancer and Reproductive Harm California Proposition 65

RL20025SS Load Cell Specifications

Full Scale Output:
3.0 (±0.008) mV/V

Output Resistance:
350 (±3.5) ohm

Input Resistance:
390 (±15) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
Two-year limited

Approvals:
NTEP
cFMus

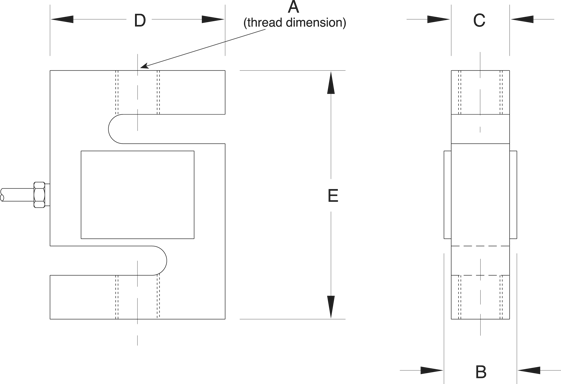

RL20025SS Load Cell Dimensions

Rated Capacity	A	B	C	D	E
lb/in
50 to 300	1/4-28 UNF	0.65	0.46	2.00	2.40
500 to 1,000	1/2-20 UNF	0.90	0.71	2.00	2.40
1,500 to 2,500	1/2-20 UNF	1.15	0.96	2.00	2.40
3,000	1/2-20 UNF	1.15	0.96	3.00	3.90
5,000	3/4-16 UNF	1.15	0.96	3.00	3.90
10,000	3/4-16 UNF	1.40	1.21	3.00	3.90
15,000	1-14 UNS	1.63	1.46	3.44	5.50
20,000	1-1/4-12 UNF	1.88	1.68	4.44	7.00

NTEP Certified

Part #	Description	List Price
226902	100lb 20ft 3mv/v 350 Ohm WW SST NTEP IIIL 10S IP67 FM	List Price: $312.00
226903	200lb 20ft 3mv/v 350 Ohm WW SST NTEP IIIL 10S IP67 FM	List Price: $312.00
226904	250lb 20ft 3mv/v 350 Ohm WW SST NTEP IIIL 10S IP67 FM	List Price: $312.00
226905	300lb 20ft 3mv/v 350 Ohm WW SST NTEP IIIL 10S IP67 FM	List Price: $312.00
226906	500lb 20ft 3mv/v 350 Ohm WW SST NTEP IIIL 10S IP67 FM	List Price: $312.00
226907	750lb 20ft 3mv/v 350 Ohm WW SST NTEP IIIL 10S IP67 FM	List Price: $312.00
226908	1000lb 20ft 3mv/v 350 Ohm WW SST NTEP IIIL 10S IP67 FM	List Price: $312.00
226909	1500lb 20ft 3mv/v 350 Ohm WW SST NTEP IIIL 10S IP67 FM	List Price: $312.00
226911	2500lb 20ft 3mv/v 350 Ohm WW SST NTEP IIIL 10S IP67 FM	List Price: $312.00
226910	2000lb 20ft 3mv/v 350 Ohm WW SST NTEP IIIL 10S IP67 FM	List Price: $312.00
226912	3000lb 20ft 3mv/v 350 Ohm WW SST NTEP IIIL 10S IP67 FM	List Price: $345.00
226914	10000lb 20ft 3mv/v 350 Ohm WW SST NTEP IIIL 10S IP67 FM	List Price: $503.00

Non-NTEP Certified

Part #	Description	List Price
226900	50lb 20ft 3mv/v 350 Ohm WW SST IP67 FM	List Price: $312.00
226915	15000lb 20ft 3mv/v 350 Ohm WW SST IP67 FM	List Price: $715.00
226916	20000lb 20ft 3mv/v 350 Ohm WW SST IP67 FM	List Price: $948.00

Conduit Adapter Kit (must be factory installed to maintain warranty)

Part #	Description	List Price
31534	1/4-18 NPT 3/8-24UNF-ZA	List Price: $40.00
31533	3/8-24UNF Thread Nipple	List Price: $40.00
