Rice Lake RL32011WB-T, Single-Ended Beam Load Cell

RL32011WB-T Load Cell Specifications

Full Scale Output:
2.0 (±0.1%) mV/V

Output Resistance:
350 (±3) ohm

Input Resistance:
385 (±10) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.02% full scale

Non-repeatability:
± 0.01% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Diameter:
0.190 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal

Warranty:
Two-year limited

Approvals:
NTEP 11-024

Rated Capacity	A	B	C	D	E	F	T
lb/in
1,250	11.50	10.47	1.25	6.47	0.47	0.53	1/2-13 UNC
2,500	11.50	10.47	1.62	6.47	0.47	0.66	5/8-11 UNC

Rated Capacity

lb/in

1,250

11.50

10.47

1.25

6.47

0.47

0.53

1/2-13 UNC

2,500

11.50

10.47

1.62

6.47

0.47

0.66

5/8-11 UNC

Part #	Description	List Price
119796	1.25k 1250lb 20ft 2mv/v 350 Ohm SST EW NTEP III 5 M IP67 Threaded	List Price: $525.00
119797	2.5k 2500lb 20ft 2mv/v 350 Ohm SST EW NTEP III 5 M IP67 Threaded	List Price: $525.00

Part #

Description

List Price

119796

1.25k 1250lb 20ft 2mv/v 350 Ohm SST EW NTEP III 5 M IP67 Threaded

List Price: $525.00

119797

2.5k 2500lb 20ft 2mv/v 350 Ohm SST EW NTEP III 5 M IP67 Threaded

List Price: $525.00

Full Scale Output:
2.0 (±0.1%) mV/V

Output Resistance:
350 (±3) ohm

Input Resistance:
385 (±10) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.02% full scale

Non-repeatability:
± 0.01% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Diameter:
0.190 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal

Warranty:
Two-year limited

Approvals:
NTEP 11-024

Rice Lake RL32011WB-T Single-ended Beam Load Cell

Standard Features

Approvals

RL32011WB-T Load Cell Specifications

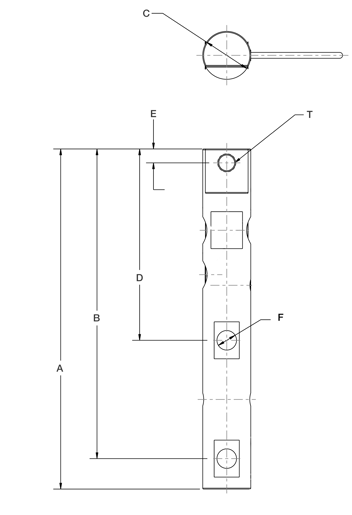

RL32011WB-T Load Cell Dimensions
