Rice Lake RL75058-LP Alloy Steel Double-ended Beam Load Cell

As of: Tuesday, July 28, 2026

Standard Features

This is a nickel-plated, high-alloy steel load cell with built-in lightning protection, an IP67 rating and 3-millivolt output. It's FM approved and NTEP Certified with capacities available from 10,000 to 125,000 pounds.

Approvals

WARNING: Cancer and Reproductive Harm California Proposition 65

RL75058-LP Load Cell Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (±5) ohm

Input Resistance:
770 (±10) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
35 ft
60 ft
100 ft

Cable Diameter:
10,000 to 25,000 lb: 0.200 in
40,000 to 125,000 lb: 0.305 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
NTEP 20-081
cFMus

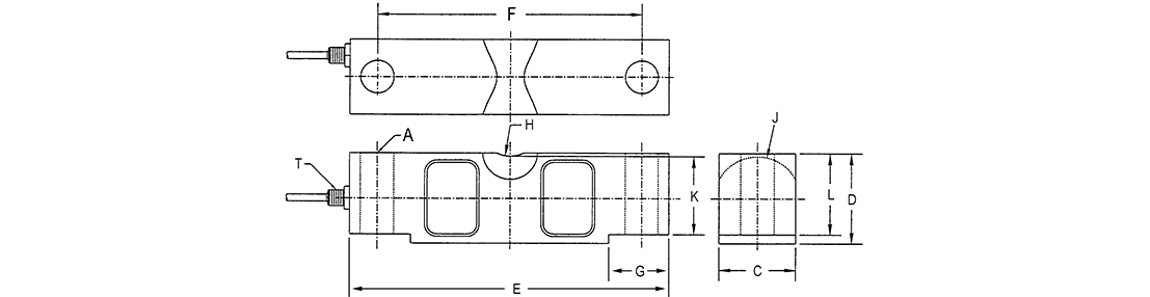

RL75058-LP Load Cell Dimensions

Rated Capacity	A	C	D	E	F	G	H	J	K	L	T
lb/in
10,000 to 25,000	0.68	1.69	1.94	7.75	6.50	1.38	0.75	0.90	1.63	1.70	1/4-18 NPT
40,000	0.81	1.94	2.44	10.25	8.50	1.93	1.00	1.12	2.00	2.10	1/4-18 NPT
50,000 to 75,000	1.06	2.44	2.94	10.25	8.50	1.93	1.00	1.37	2.54	2.65	1/2-14 NPT
100,000 to 125,000	1.62	2.90	3.86	15.25	12.75	3.13	1.50	1.80	3.30	3.43	1/2-14 NPT

NTEP Certified 35ft Cable

Part #	Description	List Price
197770	20k 20,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67	List Price: $673.00
197771	25k 25,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67	List Price: $673.00
197772	40k 40,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67	List Price: $805.00
197773	50k 50,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67	List Price: $885.00
197774	60k 60,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67	List Price: $885.00
197775	75k 75,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67	List Price: $885.00
197776	100k 100,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67	List Price: $1,669.00
197777	125k 125,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67	List Price: $1,669.00

Non-NTEP Certified 35ft Cable

Part #	Description	List Price
197769	10k 10,000lb 35ft 3mv/v 700 OHM WW FM IP67	List Price: $652.00

NTEP Certified 60ft Cable

Part #	Description	List Price
197778	50k 50,000lb 60ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67	List Price: $995.00
197781	75k 75,000lb 60ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67	List Price: $995.00
197782	75k 75,000lb 60ft Stainless over braid 3mv/v 700 OHM NTEP IIIL 10M WW FM IP67	List Price: $1,100.00
197779	125k 125,000lb 60ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67	List Price: $1,800.00

NTEP Certified 100 ft Cable

Part #	Description	List Price
197780	75k 75,000lb 100ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67	List Price: $1,100.00
