Rice Lake RLDB50000S Stainless Steel, Double-ended Beam Load Cell

As of: Monday, July 27, 2026

Standard Features

Stainless steel, welded-seal load cell designed as an interchangeable load cell for the Cardinal® DB50000S. It is NTEP Certified for 10,000 divisions and has 35 ft of cable standard. Available in 50,000 a lb capacity.

Approvals

WARNING: Cancer and Reproductive Harm California Proposition 65

RLDB50000S Load Cell Specifications

Full Scale Output:
2.0 (±0.1%) mV/V

Output Resistance:
699 to 707 ohm

Input Resistance:
686 to 714 ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F(-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
0.01 in

Cable Length:
35 ft

Cable Diameter:
0.305 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
White +Signal
Green –Signal

Warranty:
Two-year limited

Approvals:
NTEP 92-018
cFMus

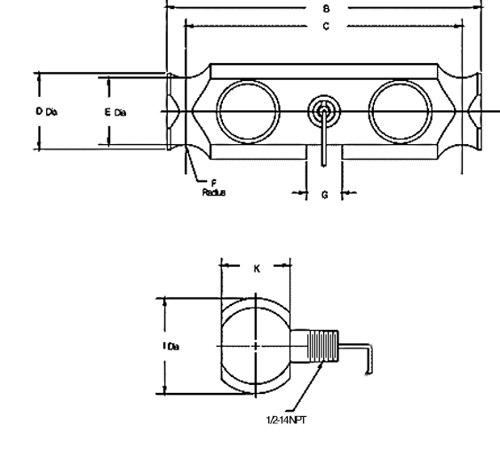

RLDB50000S Load Cell Dimensions

Rated Capacity	B	C	D	E	F	G	K	I
lb/in
50,000	8.25	7.25	2.00	1.76	0.75	0.93	1.80	2.50
