Rice Lake RLPC3SS Stainless Steel, Single Point Load Cell

As of: Monday, July 27, 2026

Standard Features

Stainless steel, environmentally sealed single point load cell that is ideally suited for bench scales. NTEP Certified and OIML approved with capacities from 7 to 150 kg. 10 ft of cable standard.

Approvals

WARNING: Cancer and Reproductive Harm California Proposition 65

RLPC3SS Load Cell Specifications

Full Scale Output:
2 mV/V

Output Resistance:
350 (±10) ohm

Input Resistance:
385 (±15) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Diameter:
0.140 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Yellow Shield

Max Platform Size:
7 to 30 kg: 350 × 350 mm
60 to 150 kg: 450 × 450 mm

Warranty:
One-year limited

Approvals:
NTEP 21-017
OIML R60/2017-A-NL1-21.17

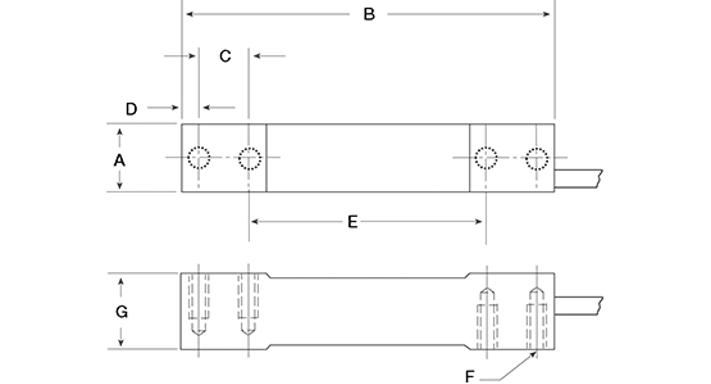

RLPC3SS Load Cell Dimensions

Rated Capacity	A	B	C	D	E	F	G
kg/mm
7 to 10	19.0	139.8	19.0	6.6	88.7	M6×1.0	30.0
30 to 60	23.8	139.8	19.0	6.6	88.7	M6×1.0	30.0
100 to 150	30.7	139.7	22.4	6.6	79.3	3/8-16 UNC	30.0

Part #	Description	List Price
205274	7kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S	List Price: $328.00
205275	10kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S	List Price: $328.00
205276	30kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S	List Price: $328.00
205277	60kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S	List Price: $328.00
205278	100kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S	List Price: $328.00
205279	150kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S	List Price: $328.00
