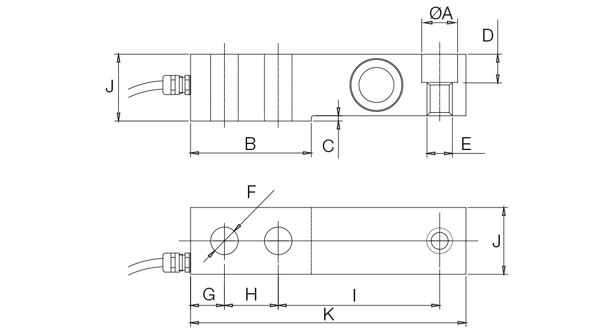

RL1434 Stainless Steel, Single Ended Beam Load Cell

Full Scale Output:
2,0 mV/V

Output Resistance:
350 ohms ± 3

Input Resistance:
350 ohms ± 3

Material/Finish:
Stainless steel

Temperature:
-10° C to 40° C

Seal Type:
Hermetically sealed, IP69K

Rated Excitation:
15 V

Insulation Resistance:
5.000 Megohms

Cable Length:
5 m

Cable Construction:
PVC

Cable Color Code:
Red..........................+ Excitation
Black........................– Excitation
Green.......................+ Signal
White.......................– Signal
Yellow......................+ Sense
Blue.........................– Sense

Warranty:
One-year limited warranty

Approvals:
CE
