RL1525 Stainless Steel, Single Ended Beam Load Cell

As of: Wednesday, July 8, 2026

WARNING: Cancer and Reproductive Harm California Proposition 65

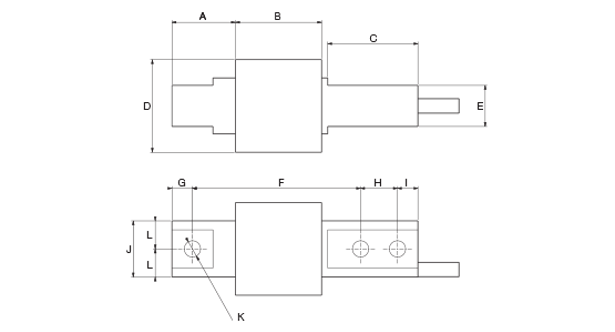

RL1525 Dimensions

Nominal
Capacity

A

B

C

D

E

F

G

H

I

J

K

L

mm

10-500 kg

31

42

44

Ø 45

Ø 20

82

10

18

10

Ø 27,3

N° 3Ø8

13.65

Full Scale Output:
2,0 mV/V

Output Resistance:
352 ohms ± 3

Input Resistance:
400 ohms ± 20

Material/Finish:
Stainless steel

Temperature:
-10° C to 40° C

Seal Type:
Welded-seal, IP68

Safe Overload
120% FS

Rated Excitation:
10 VDC (15 VDC Max)

Combined Error:
0.0017% FS

Insulation Resistance:
> 5.000 Megohms

Cable Length:
3 m, 4 conductor

Cable Color Code:
Green + Excitation
White – Excitation
Red + Signal
Black – Signal

Warranty:
One-year limited warranty
