RL1535 Stainless Steel, Single Ended Load Cell

As of: Wednesday, July 8, 2026

Portals 0 Products Ef696102108548af9823cc1c7b4306ec Orig

Standard Features

Capacities range from 500 kg to 2.500 kg
Stainless Steel
IP68

WARNING: Cancer and Reproductive Harm California Proposition 65

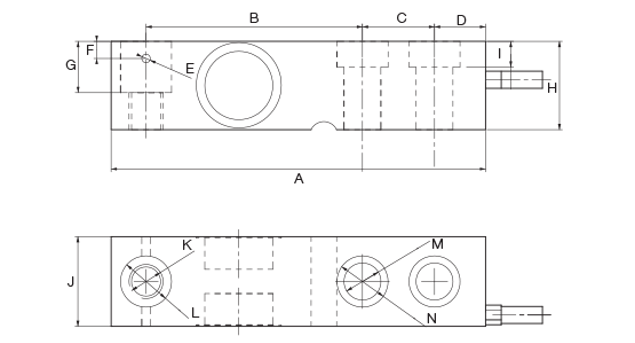

RL1535 Dimensions

Nominal
Capacity

A

B

C

D

E

F

G

H

I

J

K

L

M

N

mm

500-2.500 kg

132

76,3

25,4

18

Ø 3

6

18

31

9

31,5

M 12

Ø18

N°2 Ø13

N°2 Ø18

RL1535 Specification

Full Scale Output:
2,0 mV/V

Output Resistance:
1.000 ohms ± 5

Input Resistance:
1.100 ohms ± 20

Material/Finish:
Stainless steel

Temperature:
-10° C to 50° C

Seal Type:
Welded-seal, IP68

Safe Overload
150% FS

Rated Excitation:
10 VDC (15 VDC Max)

Combined Error:
0.017% FS

Insulation Resistance:
> 5.000 Megohms

Cable Length:
5 m, 6 conductor

Cable Color Code:
Brown + Excitation
Green – Excitation
Yellow + Signal
White – Signal
Grey + Sense
Pink - Sense

Warranty:
One-year limited warranty

Approvals:
OIML
EX

Part #	Description	List Price
185178	500kg 2mv/v 5m cable 1000 Ohm SST C3 IP68	Consult
185179	1000kg 2mv/v 5m cable 1000 Ohm SST C3 IP68	Consult
187627	2000kg 2 mv/v 5m cable 1000 Ohm SST C3 IP68	Consult
185181	2500kg 2mv/v 5m cable 1000 Ohm SST C3 IP68	Consult
