RL30 Load Cell Mount
As of: Wednesday, July 8, 2026
Standard Features
Standard Features
- Available in zinc or stainless steel
- Designed to work with RL30 load cells
Applications
- Small tanks and hoppers
- Conveyors and in-motion weighing
- Small platform scales

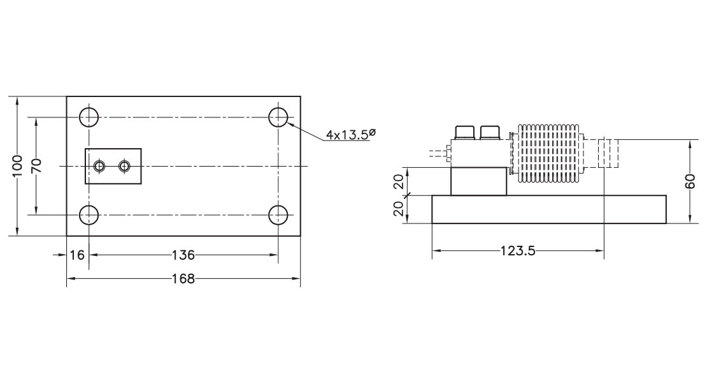

RL30 Load Cell Mount Dimensions
| Rated Capacity | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| mm | ||||||||||
| 5 to 500 kg | 168 | 136 | 16 | 100 | 70 | 124 | 60 | 4X14 | 20 | 20 |

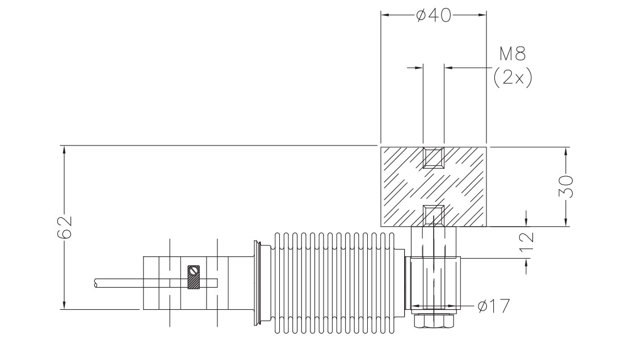

RL30 Load Cell Mount Dimensions 2
| Rated Capacity | A | B | C | D |
|---|---|---|---|---|
| mm | ||||
| 5 to 200 kg | 40 | 30 | 17 | 12 |

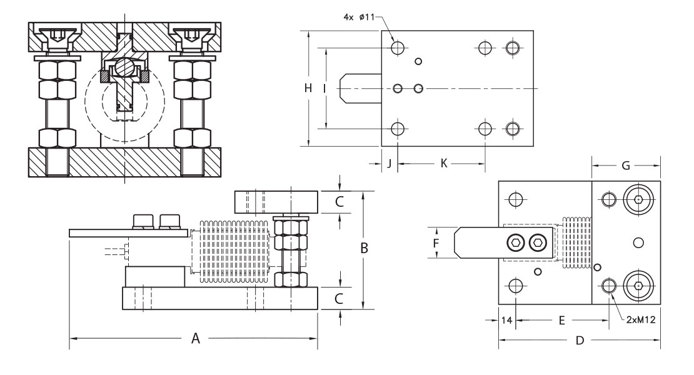

RL30 Load Cell Mount Dimensions 3
| Rated Capacity | A | B | C | D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | |||||||||||
| 5 to 500 kg | 168 | 80 | 15 | 132 | 76 | 25 | 56 | 100 | 70 | 14 | 76 |
Base Plate
| Part # | Description | List Price |
|---|---|---|
| 160870 | St. | Consult |
| 160874 | SSt | Consult |
Lift-off Prevention
| Part # | Description | List Price |
|---|---|---|
| 161104 | set / St. | Consult |
| 161105 | SSt. | Consult |
Neoprene Rubber Mount Set Top
| Part # | Description | List Price |
|---|---|---|
| 157677 | Consult |
