RL3413 Alloy Steel, S-Beam Load Cell

As of: Saturday, August 22, 2026

Portals 0 Products 7784A321a06c46bbb197074273e40acc Orig

Standard Features

Capacities range from 250 kilograms to 7.500 kilograms
Alloy Steel finish
Welded seal
IP67 rating

Approvals

WARNING: Cancer and Reproductive Harm California Proposition 65

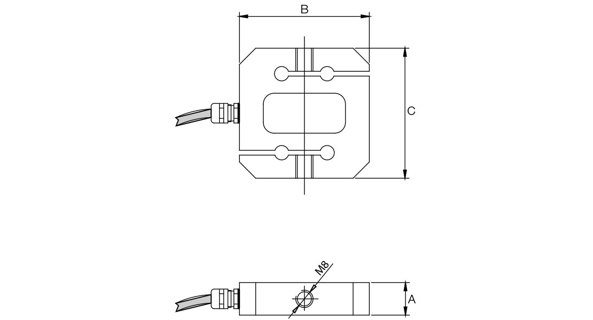

RL3413 Alloy Steel, S-Beam Load Cell Dimensions

Nominal Capacity	A	B	C
mm
30-100 kg	15	60	60
150 kg	20	60	60

RL3413 Alloy Steel, S-Beam Load Cell Info Product Specifications

Full Scale Output:
2,0 mV/V ± 0.1% mV/V

Output Resistance:
350 ohms ± 3

Input Resistance:
350 ohms ± 3

Material/Finish:
Alloy steel

Temperature:
-20° C to 70° C

Seal Type:
Welded seal, IP67

Rated Excitation:
5–15 VDC max.

Insulation Resistance:
> 5000 Megohms

Cable Length:
5 m

Cable Color Code:
Red..........................+ Excitation
Black........................– Excitation
Green.......................+ Signal
White.......................– Signal
Yellow......................+ Sense
Blue.........................– Sense

Warranty:
One-year limited warranty

Approvals:
OIML
CE
