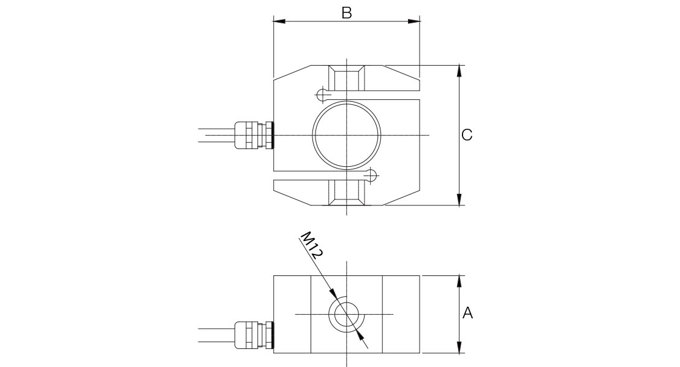

RL3424 Stainless Steel , S-Beam Load Cell

Full Scale Output:
2,0 mV/V ± 0.1% mV/V

Output Resistance:
350 ohms ± 3

Input Resistance:
350 ohms ± 3

Material/Finish:
Stainless steel

Temperature:
-30° C to 70° C

Seal Type:
Welded seal, IP68

Rated Excitation:
5–15 VDC max.

Insulation Resistance:
> 5000 Megohms

Cable Length:
5 m

Cable Color Code:
Red..........................+ Excitation
Black........................– Excitation
Green.......................+ Signal
White.......................– Signal
Yellow......................+ Sense
Blue.........................– Sense

Warranty:
One-year limited warranty

Approvals:
CE
OIML
