RL35 Load Cell Mount
As of: Wednesday, July 8, 2026
Standard Features
Standard Features
- Stainless steel and rubber models available
- Designed to work with RL35 load cells
- Lift-off mount
- Base plate only
- Ball set for oscillation
- Lift-off silent block
Applications
- Small tanks and hoppers
- Conveyors and in-motion weighing
- Small platform scales

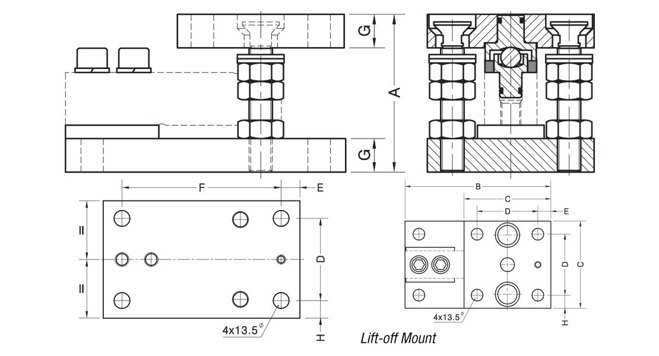

RL35 Load Cell Mount Dimensions Lift Off Mount
| Rated Capacity | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| mm | ||||||||
| 0,3 - 2 t | 94 | 168 | 100 | 70 | 16 | 136 | 20 | 15 |
| 3 to 5 t | 113 | 212 | 120 | 84 | 19 | 175 | 25 | 18 |

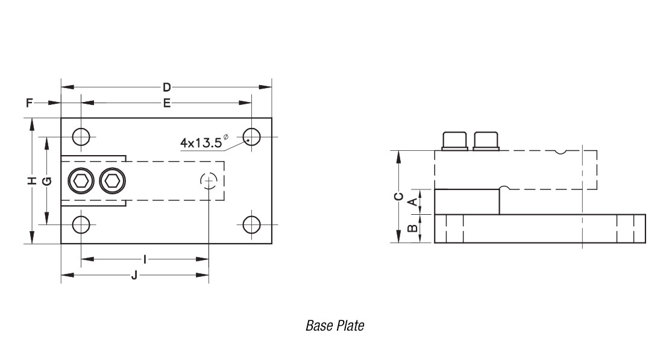

RL35 Load Cell Mount Base Plate
| Rated Capacity | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| mm | ||||||||||
| 0,3 - 2 t | 20 | 20 | 72 | 168 | 136 | 16 | 70 | 100 | 102 | 118 |
| 3 to 5 t | 20 | 25 | 93 | 212 | 175 | 19 | 84 | 120 | 134 | 152 |

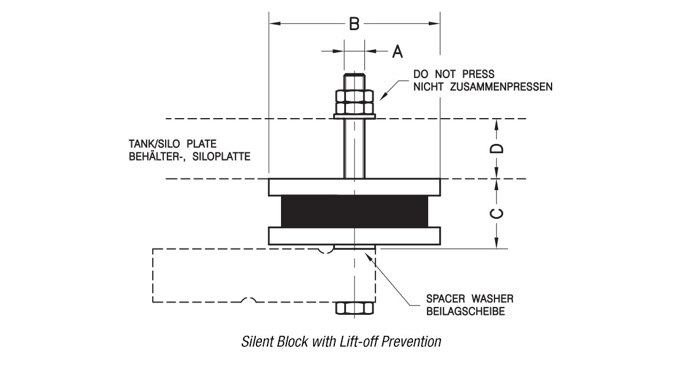

RL35 Load Cell Mount Silent Block with Lift Off Prevention
| Rated Capacity | A | B | C | D |
|---|---|---|---|---|
| mm | ||||
| 0,3 to 2 t | M12 | 100 | 41 | 0-35 |
| 3 to 5 t | M20 | 150 | 44 | 10-35 |

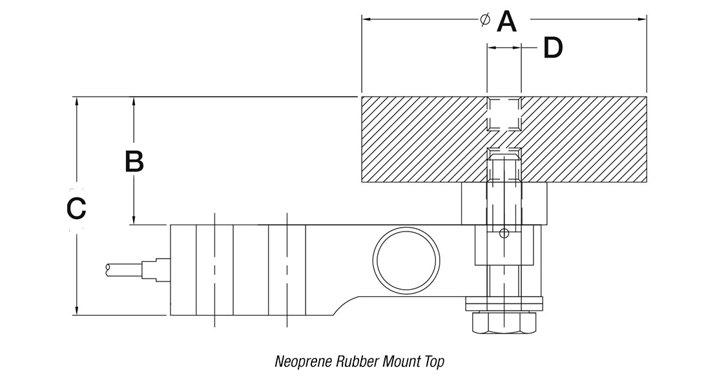

RL35 Load Cell Mount Neoprene | Elastomer Rubber Mount Top
| Rated Capacity | A | B | C | D |
|---|---|---|---|---|
| mm | ||||
| 0,3 to 1 t | 100 | 45 | 76.8 | M12 |
| 2 t | ||||

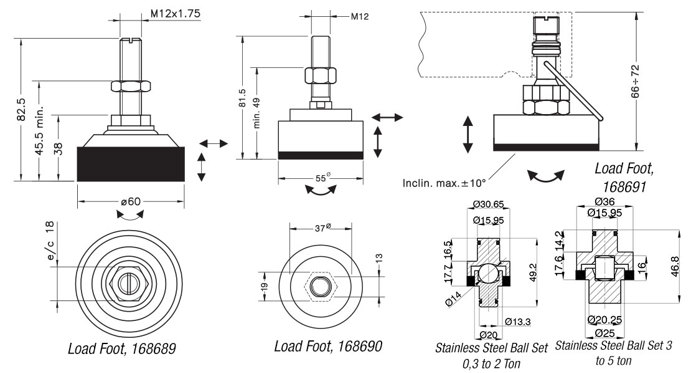

RL35 Load Cell Mount Stainless Steel Ball Set | Load Foot
Alloy Steel, Base Plate
| Part # | Description | List Price |
|---|---|---|
| 161110 | 2t, St. | Consult |
| 161112 | 5t, St. | Consult |
Alloy Steel, Lift-off Mount
| Part # | Description | List Price |
|---|---|---|
| 161106 | 2t, St. | Consult |
| 161108 | 5t, St. | Consult |
Stainless Steel Ball Set
| Part # | Description | List Price |
|---|---|---|
| 163042 | Consult | |
| 163043 | Consult |
Stainless Steel, Base Plate
| Part # | Description | List Price |
|---|---|---|
| 161111 | 2t, SSt. | Consult |
| 161113 | -5t / SSt. | Consult |
Stainless Steel, Elastomer Tank Kit
| Part # | Description | List Price |
|---|---|---|
| 160872 | 2t, SSt, D100 | Consult |
| 160873 | 5t, SSt, D150 | Consult |
Stainless Steel, Lift-off Mount
| Part # | Description | List Price |
|---|---|---|
| 161107 | 2t, SSt. | Consult |
| 161109 | 5t, SSt. | Consult |
Stainless Steel, Load Foot
| Part # | Description | List Price |
|---|---|---|
| 168689 | M-12 x 1.75, 0.3t to 2t | Consult |
| 168691 | 0.3t to 2t | Consult |
| 168690 | Stainless Steel & Rubber, M-12, 0.3t to 2t | Consult |
Stainless Steel, Neoprene Rubber Mount Top
| Part # | Description | List Price |
|---|---|---|
| 157679 | Consult |
Alloy Steel, Silent Block with Lift-off Prevention
| Part # | Description | List Price |
|---|---|---|
| CP1454 | Silent Block with Lift-off Prevention-0,3 2t, St. | Consult |
| CP1050 | Silent Block with Lift-off Prevention-3 5t, St. | Consult |
