RL42 Silo Mount Load Cell Mount
As of: Wednesday, July 8, 2026
Standard Features
Standard Features
- Capacities range from 2,5 tons to 30 tons
- Low profile design
- Lift-off protection design
Applications
- Tank, hopper or vessel weighing

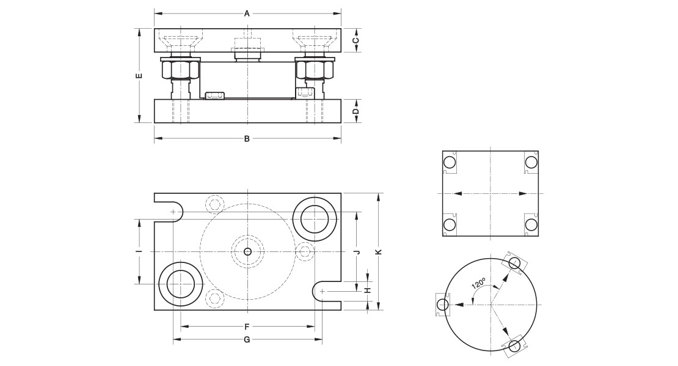

RL42 Load Cell Mount Dimensions
| Rated Capacity | A | B | C | D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | |||||||||||
| 2,5, 5, 10 t | 160 | 160 | 20 | 20 | 80 | 115 | 128 | 17 | 56 | 68 | 100 |
| 20 - 30 t | 218 | 218 | 25 | 25 | 100 | 168 | 180 | 21 | 100 | 100 | 150 |
Alloy Steel
| Part # | Description | List Price |
|---|---|---|
| 161114 | 2,5/5/10 t | Consult |
| 161116 | 20-30 t | Consult |
Stainless Steel
| Part # | Description | List Price |
|---|---|---|
| 161115 | 2,5/5/10 t | Consult |
| 161117 | 20-30 t | Consult |
