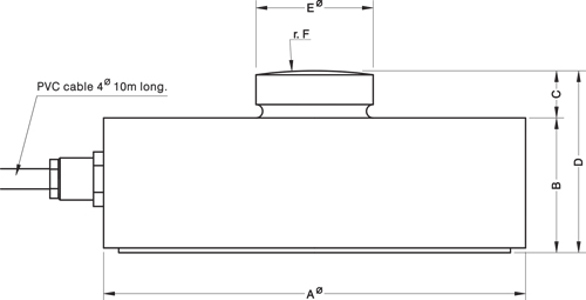

RL42 Stainless Steel, Compression Canister Load Cell

Full Scale Output:
2,0 mV/V

Output Resistance:
700 ohms, ± 5

Input Resistance:
800 ohms, ± 30

Material Finish:
Stainless steel

Temperature:
-10° C to 40° C

Seal Type:
Hermetically sealed, IP68

Safe Overload:
200%

Rated Excitation:
10 V

Combined Error:
<± 0,05%

Insulation Resistance:
>5.000 megohms

Cable Length:
10 m

Cable Construction:
PVC

Cable Color Code:
Green.......................+ Excitation
Black........................– Excitation
Red..........................+ Signal
White.......................– Signal
Blue.........................+ Sense
Yellow......................– Sense

Warranty:
One-year limited warrant
