RL4413/RL4423 Alloy Steel, Single-Point Load Cell

As of: Saturday, August 22, 2026

Standard Features

Capacities range from 5 to 40 kilograms (RL4413) and 10 to 36 kilograms (RL4423).
Alloy steel finish
Environmentally sealed
IP67 rating

Approvals

WARNING: Cancer and Reproductive Harm California Proposition 65

RL4413/RL4423 Alloy Steel, Single-Point Load Cell Specifications

Full Scale Output:
2,0 mV/V

Output Resistance:
350 ohms ± 3

Input Resistance:
390 ohms ± 3

Material/Finish:
Alloy steel

Temperature:
-20° C to 70° C

Seal Type:
Environmentally sealer, IP67

Rated Excitation:
5–15 VDC max.

Insulation Resistance:
> 5,000 Megohms

Cable Length:
5 m

Cable Color Code:
Red..........................+ Excitation
Black........................– Excitation
Green.......................+ Signal
White.......................– Signal
Yellow......................+ Sense
Blue.........................– Sense

Warranty:
One-year limited warranty

Approvals:
CE

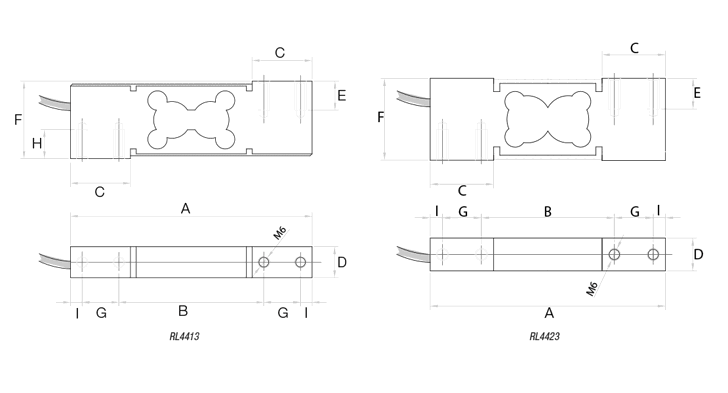

RL4413/RL4423 Alloy Steel, Single-Point Load Cell Dimensions

Nominal Capacity	A	B	C	D	E	F	G	H	I
mm (RL4413 model)
5 kg–40 kg	125	75	31	16	15	40	19	15	6
mm (RL4423 model)
10 kg–36 kg	115	65	31	16	15	40	19	–	6
