RL4511, Aluminum, Single-Point Load Cell

As of: Wednesday, July 8, 2026

WARNING: Cancer and Reproductive Harm California Proposition 65

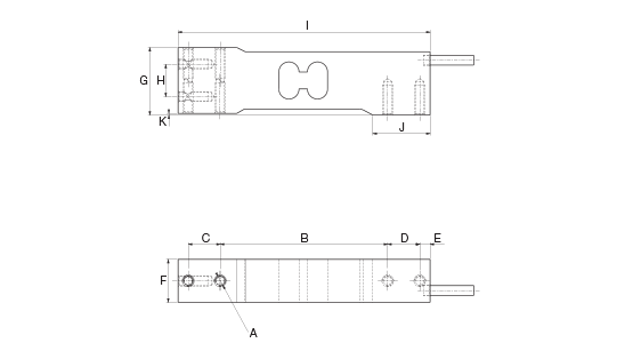

RL4511 Dimensions

Rated Capacity	A	B	C	D	E	F	G	H	I	J
mm
3-40 kg	n° 4 M6	106	15	15	12	25,4-30	22	15	130	25

Full Scale Output:
2,0 mV/V

Output Resistance:
300-500 ohms

Input Resistance:
300-500 ohms

Material Finish:
Aluminum

Temperature:
-10° C to 50° C

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% FS

Rated Excitation:
10 VDC (15 VDC Max)

Insulation Resistance:
>2.000 ohms

Cable Length:
40 cm, 4 conductor

Cable Construction:
PVC

Cable Color Code:
Blue + Excitation
Black – Excitation
White + Signal
Red – Signa

Warranty:
One-year limited warranty

Approvals:
OIML
Atex
CE
