RL4521 Aluminum, Environmentally Sealed, OIML, IP67

As of: Wednesday, July 8, 2026

WARNING: Cancer and Reproductive Harm California Proposition 65

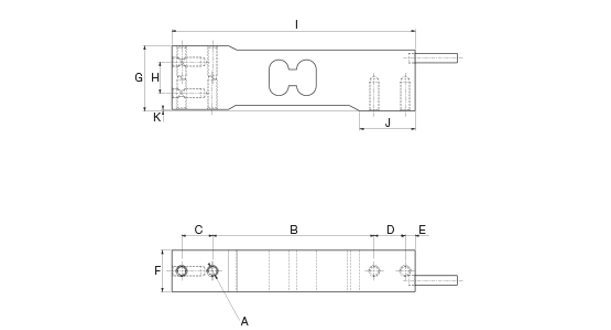

RL4521 Dimensions

Rated Capacity	A	B	C	D	E	F	G	H	I	J	K
mm
10-200 kg	N°7 M6	99,6	19,1	19,1	6,1	25,4	40	19,1	150	34	1

Full Scale Output:
2,0 mV/V

Output Resistance:
300-500 ohms

Input Resistance:
300-500 ohms

Material Finish:
Aluminum

Temperature:
-10° C to 50° C

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% FS

Rated Excitation:
10 VDC (15 VDC Max)

Combined Error:
0,03% FS

Insulation Resistance:
>2.000 ohms

Cable Length:
3 m, 6 conductor

Cable Color Code:
Blue + Excitation
Black – Excitation
White + Signal
Red – Signal
Green + Sense
Grey – Sense

Warranty:
One-year limited warranty

Approvals:
OIML
EX
CE
