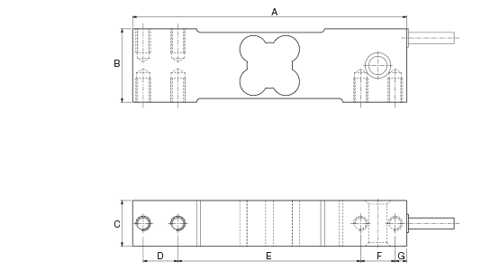

RL4534 Stainless Steel, Single-Point Load Cell

Full Scale Output:
2,0 mV/V

Output Resistance:
359 ohms, ± 5

Input Resistance:
380 ohms, ± 15

Material Finish:
Stainless steel

Temperature:
-10° C to 50° C

Seal Type:
Potted, IP67

Safe Overload:
300% FS

Rated Excitation:
10 VDC (15 VDC Max)

Insulation Resistance:
>1.000 Megohms

Cable Length:
3 m, 6 conductor

Cable Color Code
White + Excitation
Red – Excitation
Blue + Signal
Black – Signal
Green  + Sense
Grey – Sense

Warranty:
One-year limited warranty

Approvals:
OIML
Atex
