RL46 Load Cell Mount
As of: Wednesday, July 8, 2026
Standard Features
Standard Features
- Capacities range from 5 tons to 100 tons
- Alloy steel or stainless steel finish
- Lift-off prevention
Applications
- Silo weighing

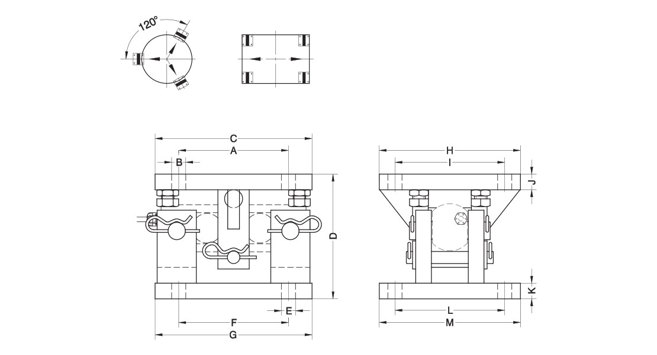

RL46 Load Cell Mount Dimensions
| Rated Capacity | A | B | C | D | E | F | G | H | I | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | |||||||||||||
| 5 to 20 t | 140 | 18 | 200 | 160 | 18 | 140 | 200 | 180 | 140 | 20 | 20 | 140 | 180 |
| 30 to 50 t | 175 | 22 | 300 | 200 | 22 | 175 | 300 | 220 | 175 | 25 | 25 | 175 | 220 |
| 75 to 100 t | 220 | 26 | 370 | 270 | 26 | 220 | 370 | 300 | 220 | 30 | 30 | 220 | 300 |
Alloy Steel
| Part # | Description | List Price |
|---|---|---|
| 161118 | 20t, St. | Consult |
| 161120 | set -50t / St. | Consult |
| 161122 | 100t, St. | Consult |
Stainless Steel
| Part # | Description | List Price |
|---|---|---|
| 161119 | 20t, SSt. | Consult |
| 161121 | set -50t / SSt. | Consult |
| 161123 | 100t, SSt. | Consult |
