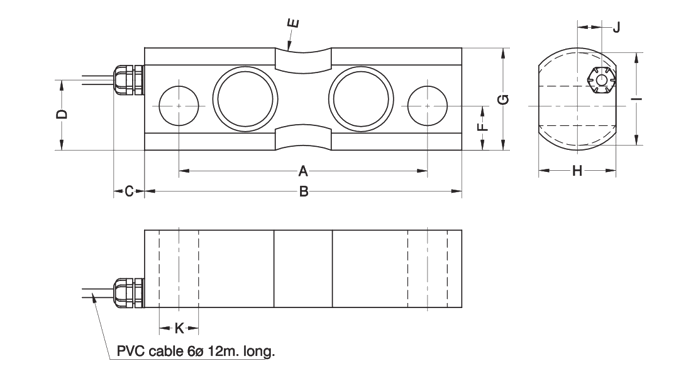

RL46 Stainless Steel, Double-Ended Beam Load Cell

Full Scale Output:
2,0 mV/V

Output Resistance:
700 ohms, ± 5

Input Resistance:
800 ohms, ± 30

Material Finish:
Stainless steel

Temperature:
-10° C to 40° C

Seal Type:
Hermetically sealed, IP68

Safe Overload:
200%

Rated Excitation:
10 V

Combined Error:
< ± 0,017%

Insulation Resistance:
> 5.000 megohms

Cable Length:
12 m

Cable Construction:
PVC

Cable Color Code:
Green ......................+ Excitation
Black .......................– Excitation
Red ......................+ Signal
White ......................– Signal
Blue ......................+ Sense
Yellow ......................– Sense

Warranty:
One-year limited warranty
