RL50225TA Mini Tank Weigh Module Kit
As of: Tuesday, July 28, 2026
Standard Features
Complete Kit Includes
- Three or four neoprene isolation/compression mounts with load cells
- 50 to 250 lb mild steel: RL50225
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
- Zinc plated mild steel assemblies
- Weighing ranges from 50 to 250 lb per module
- Neoprene isolation mounts allow for minor misalignment, thermal expansion and shock absorption
- Overload stop provides durability
Applications
- Small tanks and hoppers
- Conveyor/In-motion weighing
- Small platform scales where minor shock loading may occur
Industrial Weigh Module
The RL50225TA mini tank weigh module kit can be used in multiple medium-capacity weighing applications, including tanks, conveyors and small platform scales. The mounts can weigh between 50 and 250 pounds and are constructed from zinc-plated mild steel.

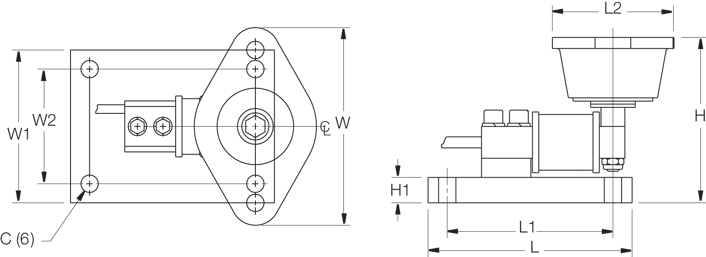

RL50225TA Dimensions
| Rated Capacity | C | C1 | H | H1 | L | L1 | L2 | W | W1 | W2 | W3 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||
| 50 to 250 | 0.34 | - | 3.13 | 0.50 | 4.00 | 3.25 | 2.38 | 3.88 | 3.00 | 2.25 | - |
Single Module (Includes Load Cell)
| Part # | Description | List Price |
|---|---|---|
| 232143 | 50lb Mild Steel Zinc Plated Compression INCL RL50225-50lb | List Price: $470.00 |
| 232142 | 100lb Mild Steel Zinc Plated Compression INCL RL20225-100lb | List Price: $470.00 |
| 232144 | 150lb Mild Steel Zinc Plated Compression INCL RL50225-150lb | List Price: $470.00 |
| 232145 | 250lb Mild Steel Zinc Plated Compression INCL RL50225-250lb | List Price: $470.00 |
3-Module Kit
| Part # | Description | List Price |
|---|---|---|
| 232147 | 50lb Mild Steel Zinc Plated Compression INCL RL50225TA-50lb JB4SS Junction Box and EL147HE Homerun Cable | List Price: $1,645.00 |
| 232149 | 100lb Mild Steel Zinc Plated Compression INCL RL50225TA-100lb | List Price: $1,645.00 |
| 232151 | 150lb Mild Steel Zinc Plated Compression INCL RL50225TA-150lb | List Price: $1,645.00 |
| 232153 | 250lb Mild Steel Zinc Plated Compression INCL RL50225TA-250lb | List Price: $1,645.00 |
4-Module Kit
| Part # | Description | List Price |
|---|---|---|
| 232148 | 50lb Mild Steel Zinc Plated Compression INCL RL50225TA-50lb | List Price: $2,115.00 |
| 232150 | 100lb Mild Steel Zinc Plated Compression INCL RL50225TA-100lb | List Price: $2,115.00 |
| 232152 | 150lb Mild Steel Zinc Plated Compression INCL RL50225TA-150lb | List Price: $2,115.00 |
| 232154 | 250lb Mild Steel Zinc Plated Compression INCL RL50225TA-250lb | List Price: $2,115.00 |
www.ricelake.com | 800-472-6703
An ISO 9001 Registered Company ©2026 Rice Lake Weighing Systems
