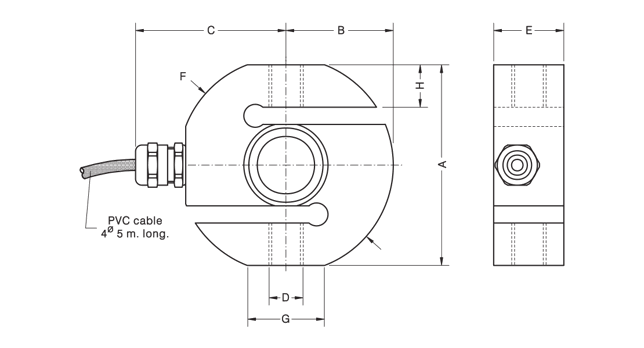

RL65 Stainless Steel, S-Beam Load Cell

Full Scale Output:
2.0 mV/V nominal

Output Resistance:
350 ohms, ±3

Input Resistance:
400 ohms, ± 20

Material Finish:
Stainless steel

Temperature:
-10° C to 55° C

Seal Type:
 Welded seal, IP68

Safe Overload:
200%

Rated Excitation:
10 V DC

Combined Error:
< ± 0,017%

Insulation Resistance:
> 5.000 megohms

Cable Length:
5 m

Cable Construction:
PVC

Cable Color Code:
Green.......................+ Excitation
Black........................– Excitation
Red..........................+ Signal
White.......................– Signal
Blue.........................+ Sense
Yellow......................– Sense

Warranty:
One-year limited warranty
