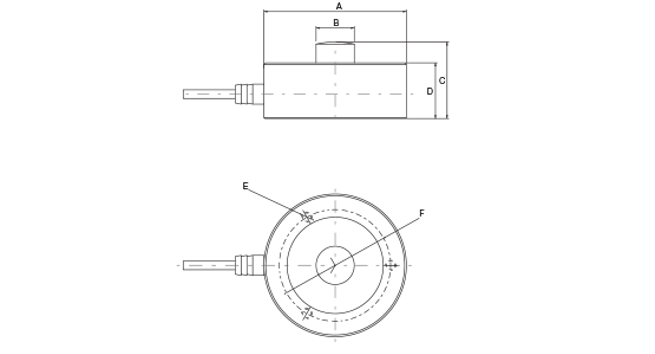

RL6515 Stainless Steel, Compression Disk Load Cell

Full Scale Output:
2,0 mV/V

Output Resistance:
700 ohms ± 5

Input Resistance:
750 ohms ± 10

Material/Finish:
Stainless steel

Temperature:
-10° C to 40° C

Seal Type:
Welded seal, IP68

Safe Overload:
120% FS

Rated Excitation:
10 VDC (15 VDC max)

Combined Error:
0.05% FS

Insulation Resistance:
> 5.000 Megohms

Cable Length:
5 m  250-5.000 kg
10 m  7.500-10.000 kg

Cable Color Code:
Red  +Excitation
Black  -Excitation
Green +Signal
White - Signal

Warranty:
One-year limited warranty

Approvals:
OIML
EX
