RL74 Load Cell Mount

As of: Wednesday, July 8, 2026

Portals 0 Products 054C92c7650e44f6aa5cff3b8dcf08c6 Orig

Standard Features

Standard Features

Capacities to 60 t standard
Steel alloy zinc plated mounts

Applications

Medium to high capacity tanks, bins and hoppers
Process control and batch weighing

WARNING: Cancer and Reproductive Harm California Proposition 65

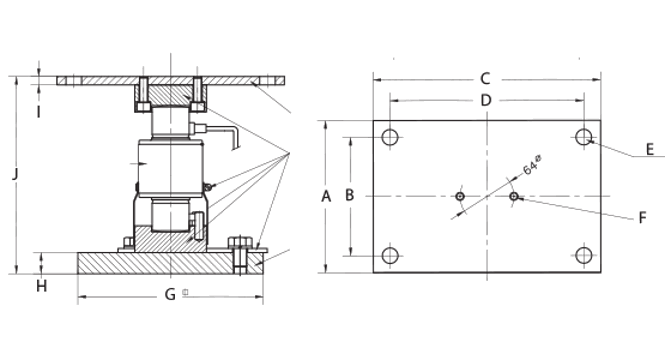

RL74 Lift-Off Mount Dimensions

Rated Capacity	A	B	C	D	E	F	G	H	I	J
mm
15 to 40 t	180	140	270	230	4x19	2 x M10	200	25	10	235
60 t	180	140	270	230	4x19	2 x M10	200	25	10	295

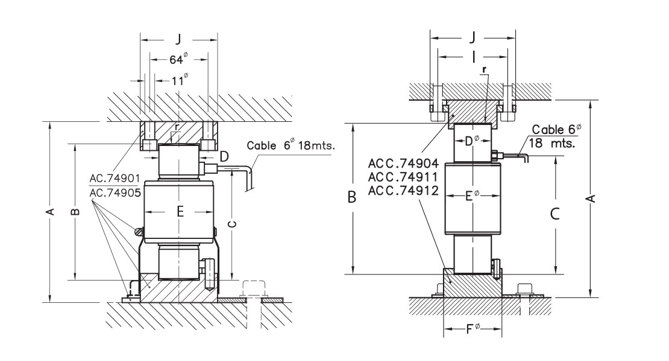

RL74 Self-Alignment Mount Dimensions

Rated Capacity	A	B	C	D	G	H	I	J	D Max	E Max	F Radius
mm
15 t to 20 t	200	150	123	44	165	18	64	85	13	5	130
25 t	200	150	123	44	165	18	64	85	13	5	150
30 t	200	150	123	44	165	18	64	85	13	5	160
40 t	200	150	123	44	165	18	64	85	13	5	180
60 t	260	210	153	44	165	18	64	85	11	3	220
100 t	340	260	208	64	165	17	120	147	18	4	290
200 t	340	260	208	64	165	17	120	147	9	2	400
400 t	400	260	208	109	200	21	190	220	8	1,4	700
600 t	440	260	208	118	200	21	190	220	8	1,4	800

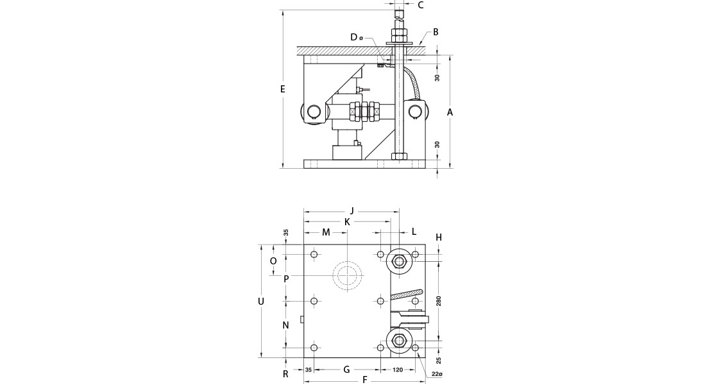

RL74 Load Cell Mount Dimensions 3

Rated Capacity	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R
mm
15 to 40 t	230	15	M20	28	500	280	115	115	33	198	160	58	83	103	200	65	50	15
60 t	300	20	M20	28	500	280	115	115	33	198	160	83	103	65	200	65	50	15
100 to 200 t	400	30	M30	50	1000	420	230	120	25	330	300	65	150	165	400	165	110	35
400 t	460	30	M30	50	1030	460	230	120	25	346	316	65	166	165	400	165	110	35
600 t	510	35	M33	55	1035	530	270	180	25	400	345	90	175	185	450	185	133	40

Part #	Description	List Price
161128		Consult
161129		Consult
161130		Consult
161131		Consult
161132		Consult
161133		Consult
161134	400t, SSt.	Consult
161135		Consult
