RL74 Stainless Steel, Compression Canister Load Cell

As of: Saturday, August 22, 2026

Portals 0 Products F94ac245b4b043cfab912c56999c9398 Orig

Standard Features

Capacities range from 15 tons to 600 tons
Stainless steel finish
Hermetically sealed
IP68/IP69k rating

WARNING: Cancer and Reproductive Harm California Proposition 65

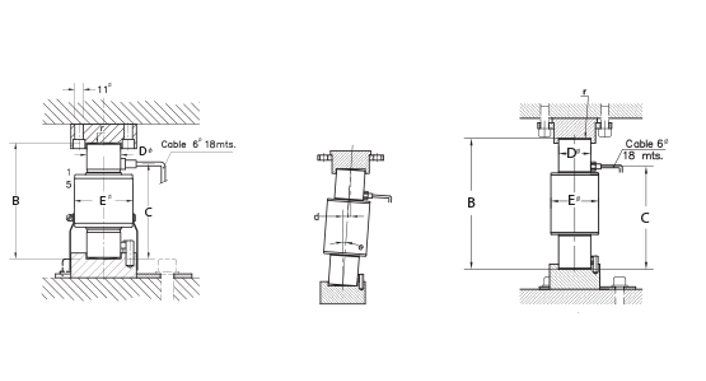

RL74 Compression Canister Load Cell Dimensions

Rated Capacity	B	C	D	E
mm
15-20 t	150	123	44	76
25 t	150	123	44	76
30 t	150	123	44	76
40 t	150	123	44	76
60 t	210	153	44	76
100 t	260	208	64	104
200 t	260	208	64	104
400 t	260	208	109	140
600 t	260	208	118	140

RL74 Compression Canister Load Cell Specifications

Full Scale Output:
2,0 mV/V

Output Resistance:
705 ohms, ± 5

Input Resistance:
800 ohms, ± 5

Material Finish:
Stainless steel

Temperature:
-10° C to 40° C

Seal Type:
Hermetically sealed, IP68/IP69K

Safe Overload:
150%

Rated Excitation:
10 V

Combined Error:
< ± 0,013%

Insulation Resistance:
> 5.000 megohms

Cable Length:
18 m

Cable Construction:
PVC

Cable Color Code:
Green ......................+ Excitation
Black .......................– Excitation
Red ......................+ Signal
White ......................– Signal
Blue ......................+ Sense
Yellow ......................– Sense

Warranty:
One-year limited warranty
